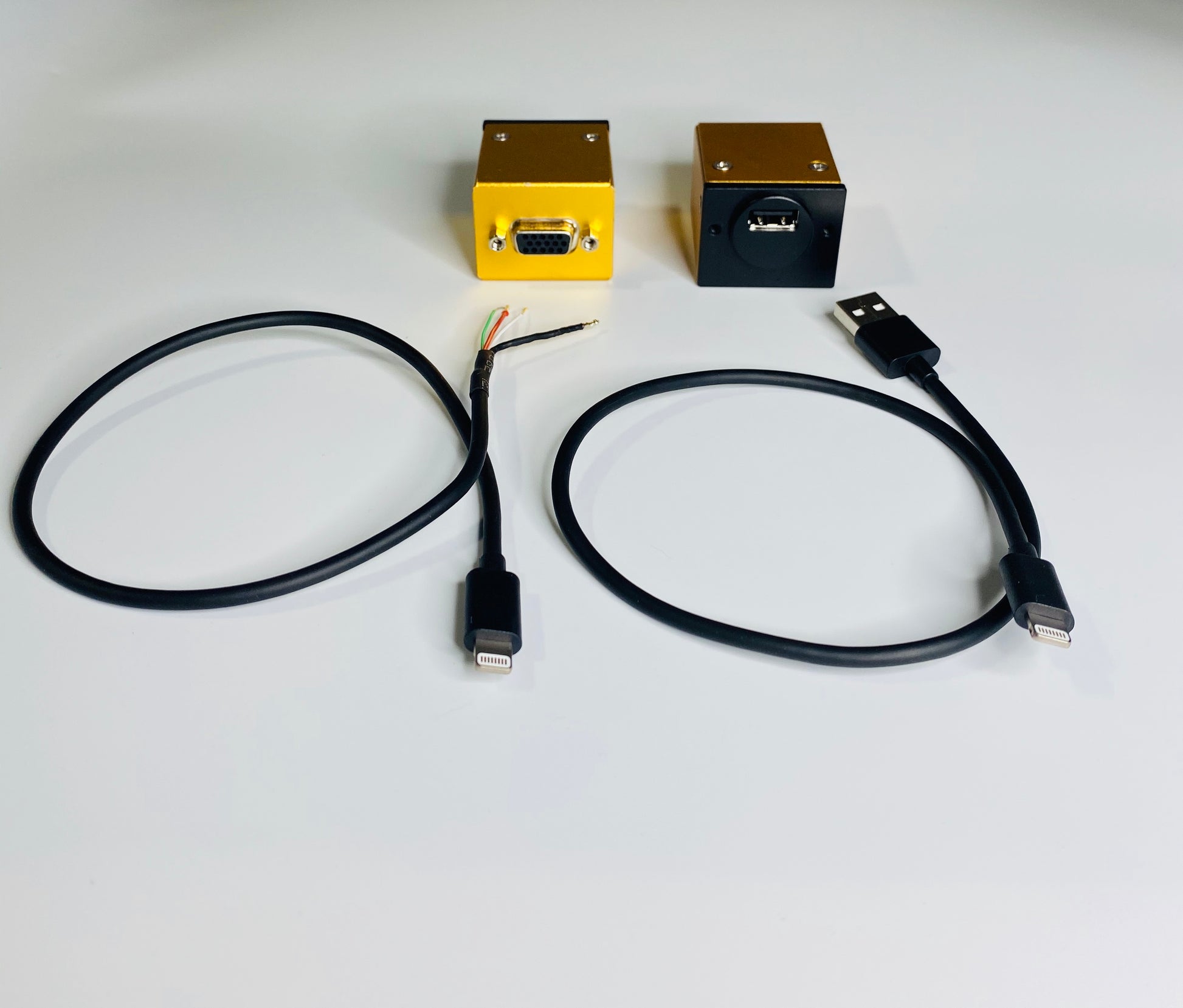

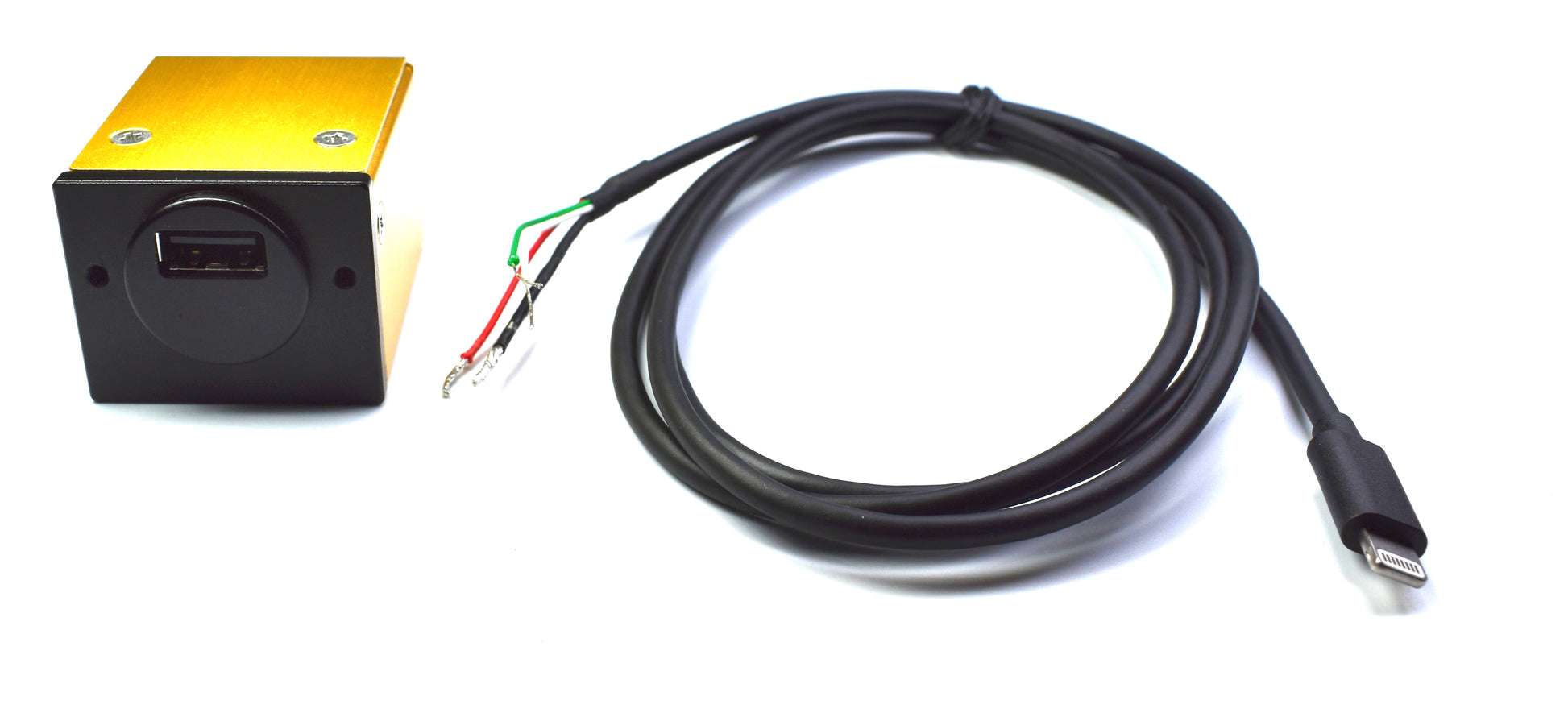

smartPower Dual USB 2.7 Amp power - Single USB-A port front panel and USB Power from Apple Lightning cable in Rear Connector (Currently out of stock will ship in August)
smartPower Dual USB 2.7 Amp power - Single USB-A port front panel and USB Power from Apple Lightning cable in Rear Connector (Currently out of stock will ship in August)
Choose Options
Share
Couldn't load pickup availability
- Description
- Specifications
- Video Channel
- Manuals / Drawings
- Warranty
- Faa certification
- Installation examples
- Recalibration
Description
Reliable Dual USB Power in your Panel

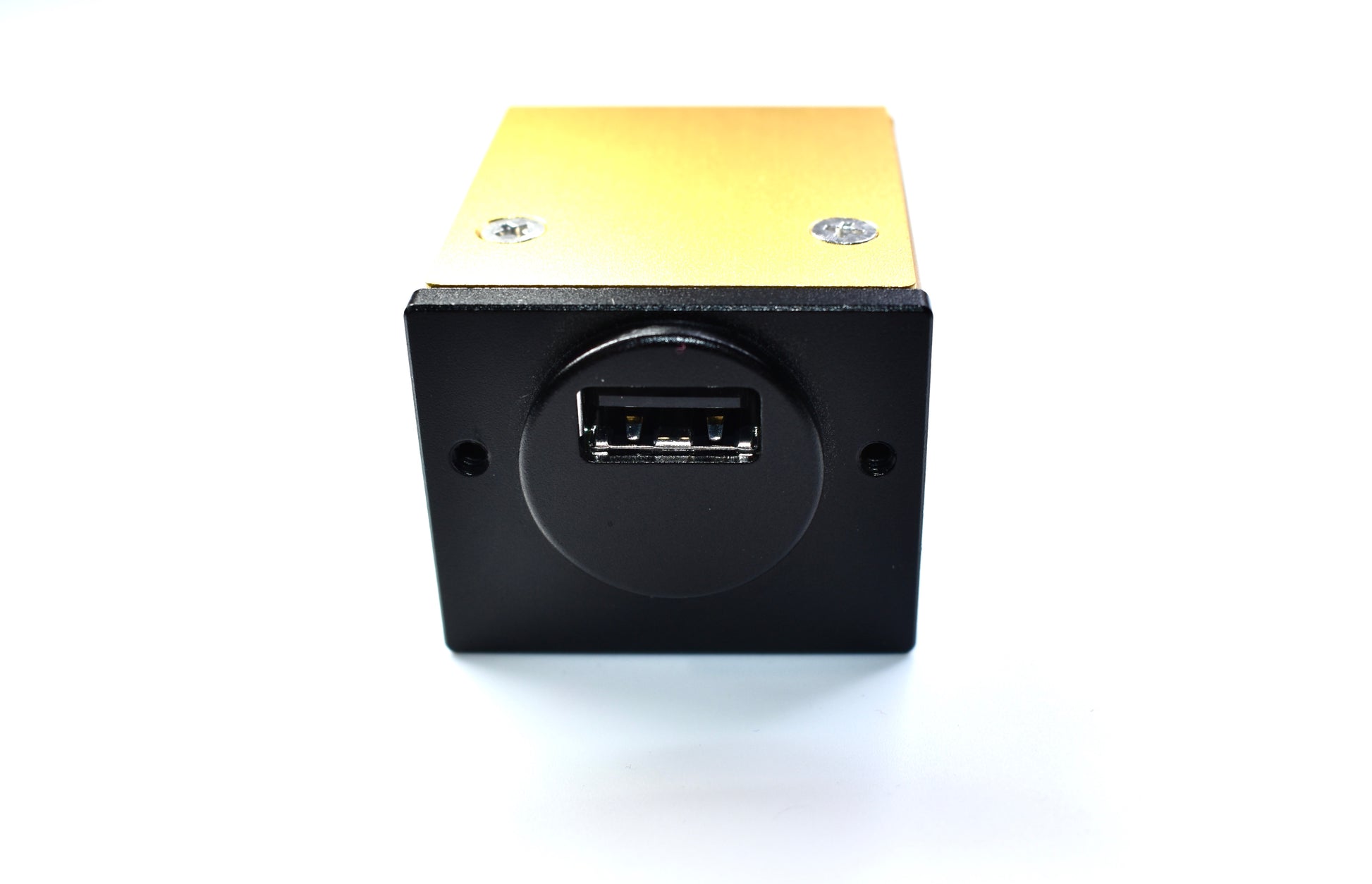

The smartPower 250-101 is a cockpit flush mounted Dual USB-A power / charging unit designed to provide reliable power for most consumer products with USB charge capabilities such as smartphones and tablets.
The smartPower 250-101 provides 2.7 amps at 5 VDC ± 0.25 (10 watt) for the USB port / connection. The small, unobtrusive design requiring only a 0.785 inch square cutout in the panel to be mounted. The smartPower
250-101 features a green LED backlit port for easier use in night flying conditions.
Now available in two faceplate styles... a custom square faceplate or a round faceplate style that fits all standard openings for 12v cigarette lighter socket panel cuts.
The smartPower 250-101 features a feedback loop to keep the 2.7 amp current stable at all times. The units are EMI shielded and also feature reverse polarity protection.
Approved for FAA Certified Part 23 Aircraft and Part 27 / 29 Rotorcraft
All smartPower 150/250 USB Power Supplies from Guardian Avionics are approved for installation in certified aircraft and rotorcraft under 14 CFR Part 23, 27 and 29 as "Non-Required Safety Enhancing Equipment" (NORSEE) as outlined in FAA memorandum number PS-AIR-21.8-1602. Power supplies and mounts may be installed as a minor alteration. Please refer to this link for the Guardian Avionics NORSEE Letter of Authorization.
Keep all your common USB charged products powered
- Smartphones / iPhones / Cell and Mobile Phones
- Tablets and iPads
- GPS Units
- Cameras / GoPros
- GPS Receivers / Augmenters
Specifications
- 2.7 amps (Output Current)
- Input Voltage: 9 - 48 VDC
- Output Voltage: 5 VDC +/- 0.25 (10 watt)
- Features Reverse Polarity Protection
- EMI Filtered
- Green LED Internal Backlight
- Weight: 2.6 ounces
- Dimensions: 1.5" W x 1.5" H x 2.1" D (panel cut 0.785" x 0.785")
- One year limited warranty
Video Channel
View all of our videos on our YouTube video channel.
Manuals / Drawings
Warranty
All products come with a 60-day money back guarantee and a one (1) year limited warranty. The warranty will be void if the unit has been opened or tampered with. If you experience any problems with the unit, please call 520-889-1177 or email us at support@guardianavionics.com and we will gladly assist you and have the problem rectified.
WARRANTY COVERAGE
GUARDIAN AVIONICS/CO GUARDIAN LLC. WARRANTS TO THE ORIGINAL CONSUMER PURCHASER, THAT THIS DETECTOR WILL BE FREE OF DEFECTS IN MATERIAL AND WORKMANSHIP FOR A TO REPLACEMENT OF THE PRODUCT, REPAIR OF THE PRODUCT OR REPLACEMENT OF THE PRODUCT WITH REPAIRED PRODUCT AT THE DISCRETION OF THE MANUFACTURER. THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE, NEGLECT, TAMPERING OR OTHER CAUSES NOT ARISING FROM DEFECTS IN MATERIAL OR WORKMANSHIP. THIS WARRANTY EXTENDS
TO THE ORIGINAL CONSUMER PURCHASER OF THE PRODUCT ONLY.
Warranty Disclaimers
Any implied warranties arising out of this sale, including but not limited to the implied warranties of description, merchantability and fitness for a particular purpose, are limited in duration to the above warranty period. In no event shall the Manufacturer be liable for loss of use of this product or for any indirect, special, incidental or consequential damages, or costs, or expenses incurred by the consumer or any other user of this product, whether due to a breach of contract, negligence, strict liability in tort or otherwise. The manufacturer shall have no liability for any personal injury, property damage or any special,
incidental, contingent or consequential damage of any kind resulting from gas leakage, fire or explosion.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above
limitations or exclusions may not apply to you.
Please note that Guardian Avionics is not responsible for loss and/or damages resulting from installation or soldering errors.
Legal Remedies
This warranty gives you specific legal rights and you may also have other rights that vary from state to state.
Warranty Performance
During the above warranty period, your product will be replaced with a comparable product if the defective product is returned, postage prepaid, to Guardian Avionics, Customer Service Department, 1840 E Valencia Rd, Suite 216, Tucson, AZ 85706, together with proof of purchase date. Please include a note describing the problem when you return the unit. The replacement product will be in warranty for the remainder of the original warranty period or for six months, whichever is longer. Other than the cost of postage, no charge will be made for replacement of the defective product.
Important: Do not attempt to open unit. If unit is opened, warranty will be void.
Your Carbon Monoxide Alarm is not a substitute for property, disability, life or other insurance of any kind. Appropriate insurance coverage is your responsibility. Consult your insurance agent.
Warranty Registration
Your unit is automatically registered for a 1-year limited warranty from date of purchase, provided you retain the proof of purchase (invoice). To ensure that you are informed of the latest updates and news on our products, please fill out the warranty card that comes with the product, and mail it to us at:
CO Guardian LLC dba Guardian Avionics.
1840 E Valencia Rd, Suite 216
Tucson, AZ 85706
Your unit has a Serial Number. Please check that the unit you receive has the same serial number as shown in your invoice.
For Warranty Service
In case you experience any problems with the unit, you may contact our customer service department at 520-889-1177 for assistance. Even if you have purchased the unit from one of our distributors, you can contact us directly at the following address for technical support or in case you have any problems with your unit:
Guardian Avionics
CO Guardian LLC.
1840 E Valencia Rd, Suite 216
Tucson, AZ 85706
Phone 520-889-1177
Fax 520-889-8249
Email support@guardianavionics.com
Faa certification
Installation examples
View our installation examples.
