smartPanel Mount for Apple iPad Pro 10.5-in & iPad Air 3rd Gen (Apple Lightning Cable)
smartPanel Mount for Apple iPad Pro 10.5-in & iPad Air 3rd Gen (Apple Lightning Cable)
52-20
Choose Options
Share
Couldn't load pickup availability
- Description
- Specifications
- Video Channel
- Manuals / Drawings
- Warranty
- Faa certification
- Installation examples
- Recalibration
Description
A new flush mounting system to dock and fully integrate your Apple iPad Pro 10.5-in into your aircraft instrument panel.
Fits iPad Models:
- Pro 10.5" (A1701, A1709)
- iPad Air 3 (A2152, A2153)

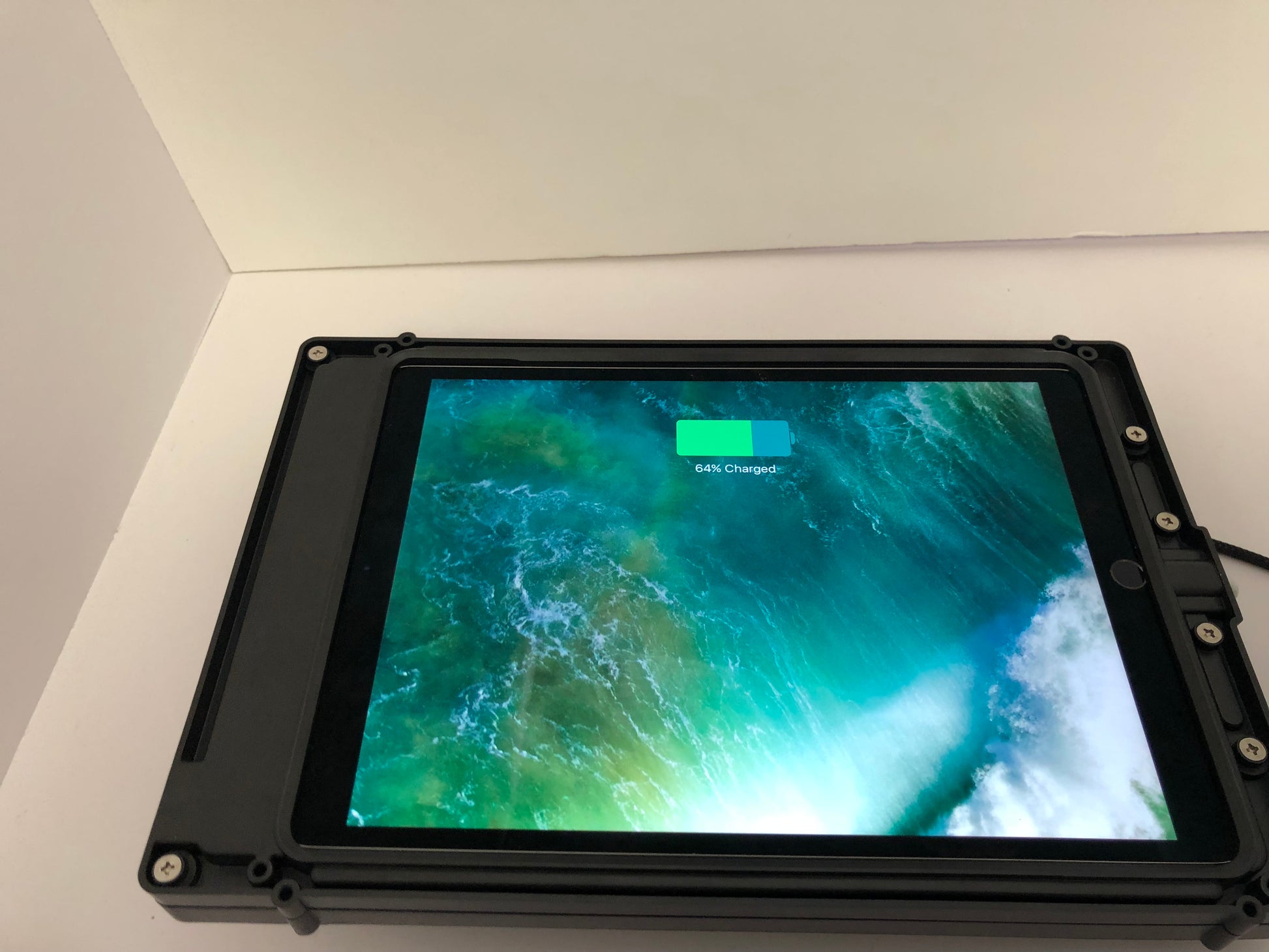

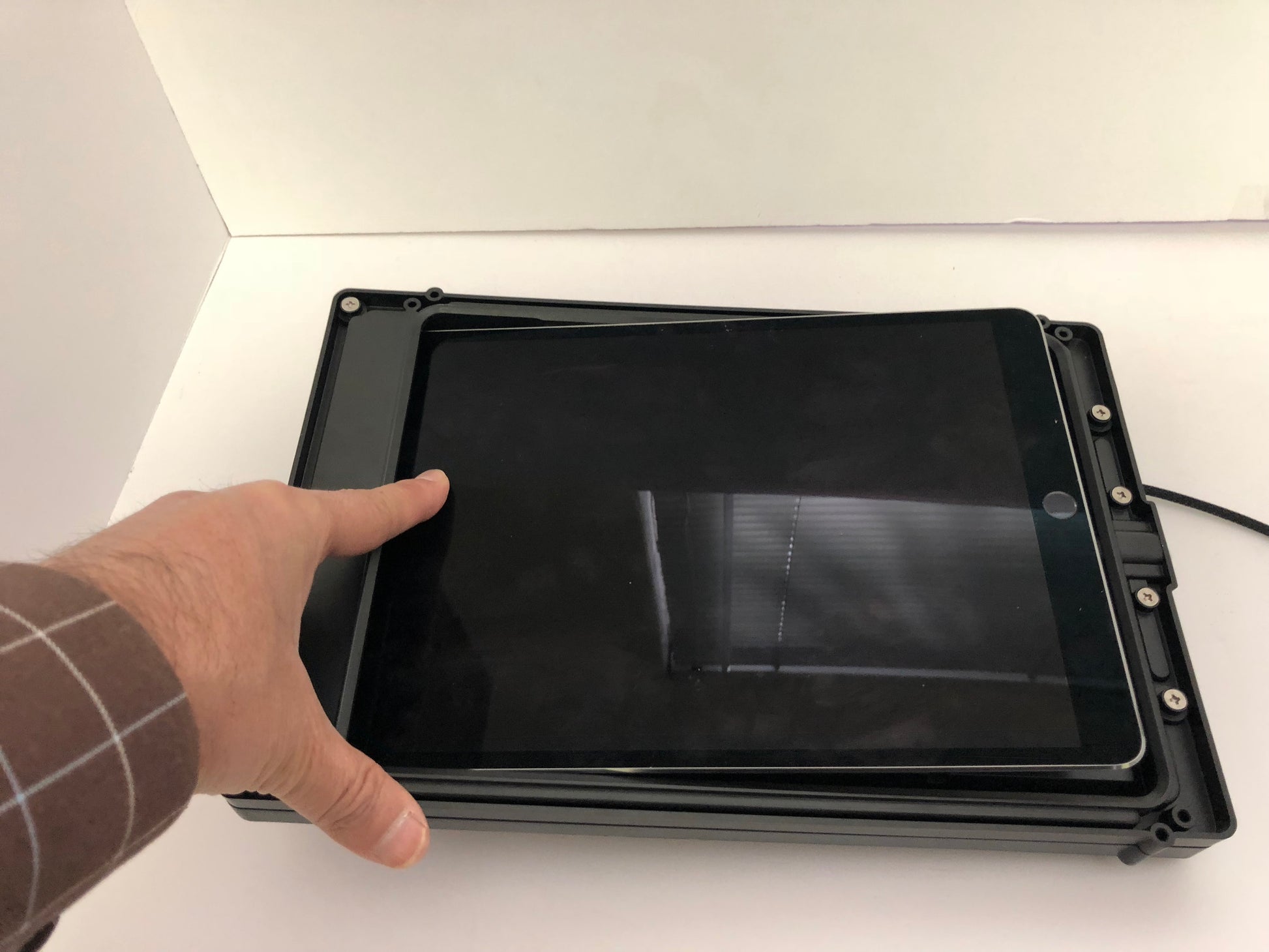

The smartPanel Mount for Apple iPad Pro 10.5-in is a new flush mounting system to easily dock and seamlessly integrate your existing iPad into your aircraft instrument panel -- giving it a clean, professional appearance in an easy to view position! Once installed, the smartPanel mount allows your iPad to be docked in seconds, fully connected to power and audio with built-in cable ports. Removal is just
as easy -- just slide, push, and remove!
The new iPad Pro 10.5-in model is becoming very popular in aviation with ample screen size for viewing and a bright Retina display for superior visibility in even the brightest of cockpits. The smartPanel Mount for iPad Pro 10.5-in brings that functionality and performance within easy reach and sight, beautifully transforming your new or existing panel.
Power supplies may be installed as a minor alteration. Please refer to this link for the Guardian Avionics NORSEE Letter of Authorization.
Designed with General Aviation in mind.

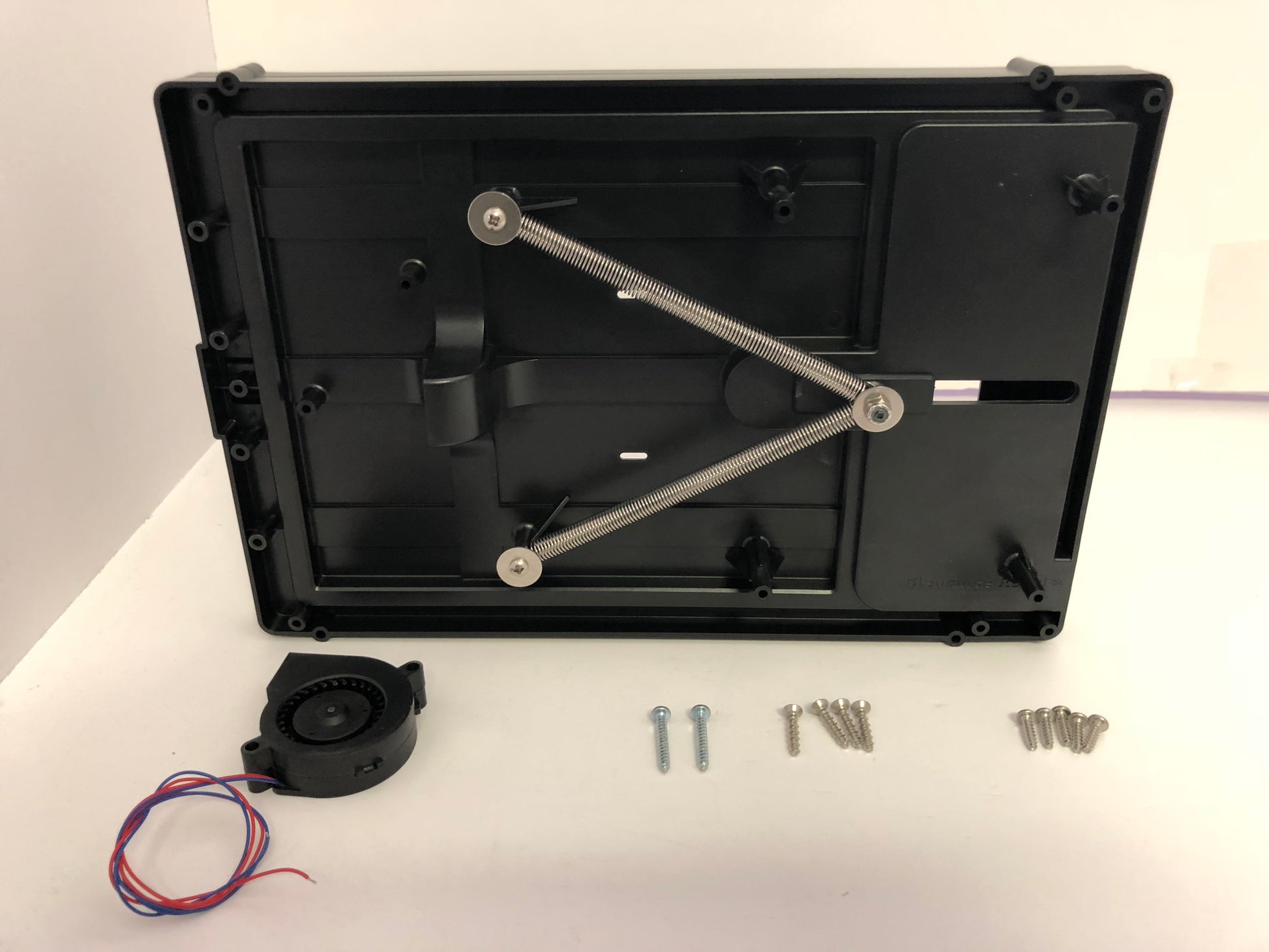

The smartPanel Mount for iPad Pro 10.5-in was designed by aerospace engineers to perform in the unique environment of the cockpit. The spring actuated mounting cradle securely holds the iPad in place during the roughest of turbulence. The clean, flush mount has a shallow chassis
allowing it to be easily installed in even the smallest of instrument panels. Built-in ports for the Apple Lightning plug and a 3.5mm audio cable help keep cables safely and securely positioned behind the panel, allowing you the ability to connect to power, data, and audio without
the cord mess.
Keep it cool.
As they are being used, iPads generate heat that can affect performance -- resulting in a high-temperature shut down when you might need it most! Pilots have found this out the hard way when using a temporary mounting solution like Velcro to attach their unit to the instrument panel. The

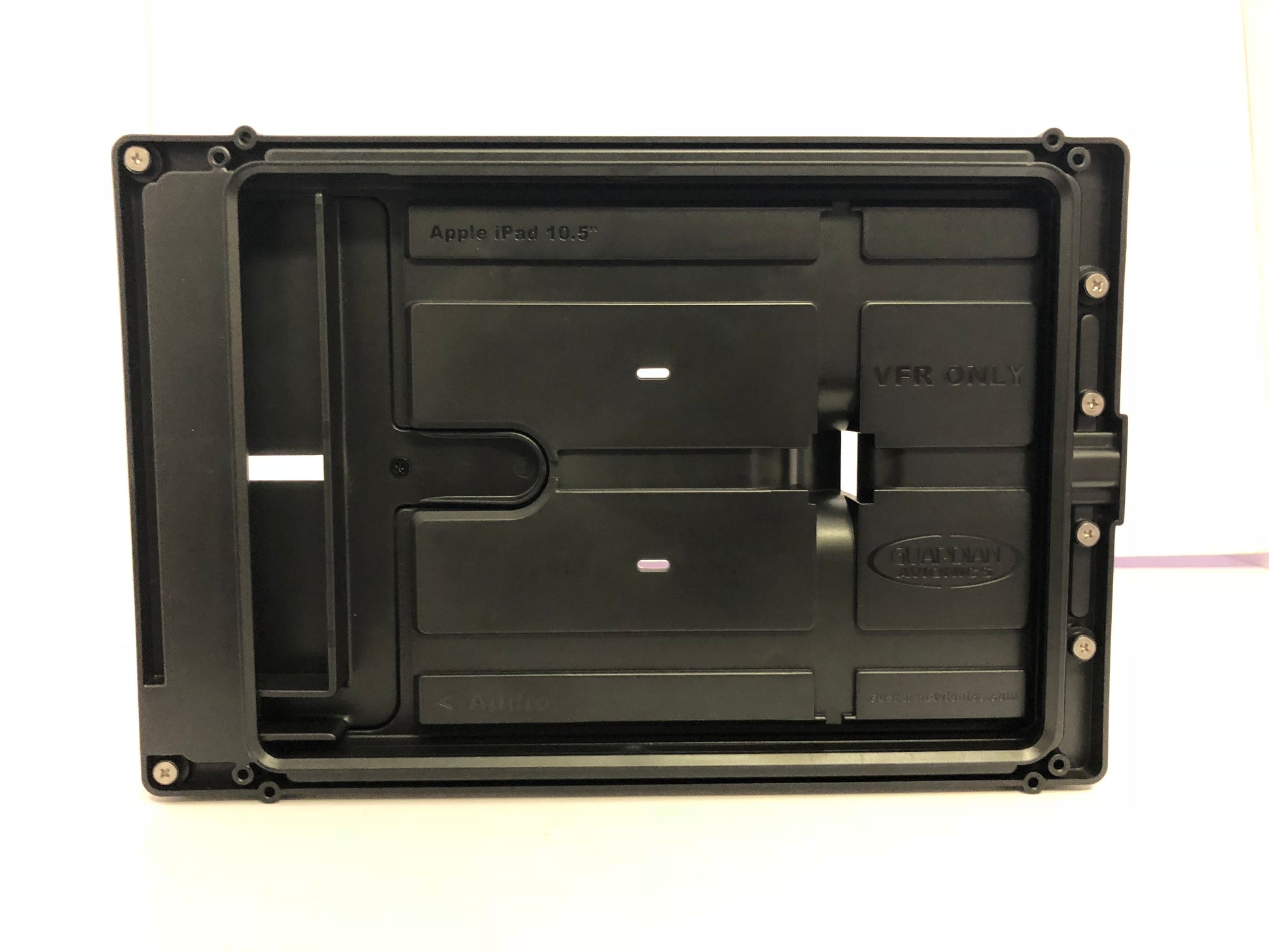

smartPanel Mount was designed with cooling in mind. Each mount has a built-in Fan Blower (14 or 28V) capable of supplying 4.6 Cubic feet per minute of Air and because it is powered by the aircraft you will not run out of battery. Each panel mounting tray features cooling channels to circulate Fan Blower air behind your iPad to keep it cool even under the heaviest of use.
Simple Installation.
The smartPanel Mount is designed for easy installation in your panel. Each durable molded ABS plastic unit is self-contained and mounts with only four screws. Our installation drawings give you the exact panel cutout details and screw positions in either PDF or AutoCAD DXF for precise cuts.
Mount in Automobiles, Boats, RVs, and Displays Too!
Though the smartPanel Mount for iPad Pro was designed for use in aircraft, the durable construction and well-designed flush mount can be used easily for a wide variety of applications -- wherever there is a flat surface!
- Automobile - A great custom dashboard mount for custom cars, auto restorations, or to incorporate into your own upgrade design to customize your car or
truck. An easy way to add a clean and custom navigation display in any vehicle! - Marine / Boats - The thin profile flush mount works well to create a custom bridge display in your boat, yacht, or watercraft for charts, weather, and navigation information. Mount in the wall of your cabin for a
space-saving entertainment / communication / information system! - Recreational Vehicles (RVs) and Campers
- Create a custom mount in the wall of your trailer, RV, or mobile home to have a simple entertainment and communication system while saving space! - Displays / Office / Home Use - An easy-to-install custom flush mount to add to trade show displays,
retail kiosks, educational exhibits, home entertainment systems, and home management systems.
Specifications
Specs:
- Made of durable black ABS plastic
- Overall Dimensions: 11.75" L / 7.80" W / 1.90" Deep
- Panel Cutout Dimensions: 9.90" L / 7.24" W
- Weight 13.7 oz
- 1 year Limited Warranty
- 60-day money-back guarantee
Apple Model Numbers compatible:
- iPad Pro 10.5 (A1701, A1709)
Video Channel
iPad 10.5 Mount Functionality View all of our videos on our YouTube video channel.
Manuals / Drawings
- Information Sheet on smartPanel Panel Mounts (PDF)
- Installation Manual for smartPanel Mounts for iPad / iPhone (all models) (PDF)
- smartPanel Mount Installation Drawings for iPad 10.5 mounts (PDF)
- smartPanel Mount Installation Drawings for all mounts (DXF/AutoCAD - ZIP)
- FAA Letter of Authorization for NORSEE Installation in 14 CFR Part 23, 27, 29 Aircraft (PDF)
- 3D STEP File iPad 10.5-in & Air 3rd Gen
- Autodesk Free STEP File viewer
*If you are having issues viewing the STEP file please click the link here.
Warranty
All products come with a 60-day money back guarantee and a one (1) year limited warranty. The warranty will be void if the unit has been opened or tampered with. If you experience any problems with the unit, please call 520-889-1177 or email us at support@guardianavionics.com and we will gladly assist you and have the problem rectified.
WARRANTY COVERAGE
GUARDIAN AVIONICS/CO GUARDIAN LLC. WARRANTS TO THE ORIGINAL CONSUMER PURCHASER, THAT THIS DETECTOR WILL BE FREE OF DEFECTS IN MATERIAL AND WORKMANSHIP FOR A TO REPLACEMENT OF THE PRODUCT, REPAIR OF THE PRODUCT OR REPLACEMENT OF THE PRODUCT WITH REPAIRED PRODUCT AT THE DISCRETION OF THE MANUFACTURER. THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE, NEGLECT, TAMPERING OR OTHER CAUSES NOT ARISING FROM DEFECTS IN MATERIAL OR WORKMANSHIP. THIS WARRANTY EXTENDS
TO THE ORIGINAL CONSUMER PURCHASER OF THE PRODUCT ONLY.
Warranty Disclaimers
Any implied warranties arising out of this sale, including but not limited to the implied warranties of description, merchantability and fitness for a particular purpose, are limited in duration to the above warranty period. In no event shall the Manufacturer be liable for loss of use of this product or for any indirect, special, incidental or consequential damages, or costs, or expenses incurred by the consumer or any other user of this product, whether due to a breach of contract, negligence, strict liability in tort or otherwise. The manufacturer shall have no liability for any personal injury, property damage or any special,
incidental, contingent or consequential damage of any kind resulting from gas leakage, fire or explosion.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above
limitations or exclusions may not apply to you.
Please note that Guardian Avionics is not responsible for loss and/or damages resulting from installation or soldering errors.
Legal Remedies
This warranty gives you specific legal rights and you may also have other rights that vary from state to state.
Warranty Performance
During the above warranty period, your product will be replaced with a comparable product if the defective product is returned, postage prepaid, to Guardian Avionics, Customer Service Department, 1840 E Valencia Rd, Suite 216, Tucson, AZ 85706, together with proof of purchase date. Please include a note describing the problem when you return the unit. The replacement product will be in warranty for the remainder of the original warranty period or for six months, whichever is longer. Other than the cost of postage, no charge will be made for replacement of the defective product.
Important: Do not attempt to open unit. If unit is opened, warranty will be void.
Your Carbon Monoxide Alarm is not a substitute for property, disability, life or other insurance of any kind. Appropriate insurance coverage is your responsibility. Consult your insurance agent.
Warranty Registration
Your unit is automatically registered for a 1-year limited warranty from date of purchase, provided you retain the proof of purchase (invoice). To ensure that you are informed of the latest updates and news on our products, please fill out the warranty card that comes with the product, and mail it to us at:
CO Guardian LLC dba Guardian Avionics.
1840 E Valencia Rd, Suite 216
Tucson, AZ 85706
Your unit has a Serial Number. Please check that the unit you receive has the same serial number as shown in your invoice.
For Warranty Service
In case you experience any problems with the unit, you may contact our customer service department at 520-889-1177 for assistance. Even if you have purchased the unit from one of our distributors, you can contact us directly at the following address for technical support or in case you have any problems with your unit:
Guardian Avionics
CO Guardian LLC.
1840 E Valencia Rd, Suite 216
Tucson, AZ 85706
Phone 520-889-1177
Fax 520-889-8249
Email support@guardianavionics.com
Faa certification
Installation examples
View our installation examples.
