smartPanel Mount and Remote single USB Port Package for Apple iPhone X (Out of Stock)

smartPanel Mount Package for Apple iPhone X.

Includes Panel Mount, 150-101 2.7 Amp Power Supply to Power Mount Plus, Fan Blower, Lightning Cable, and 3.5mm Audio Cable

Fits iPhone Models:

• iPhone X

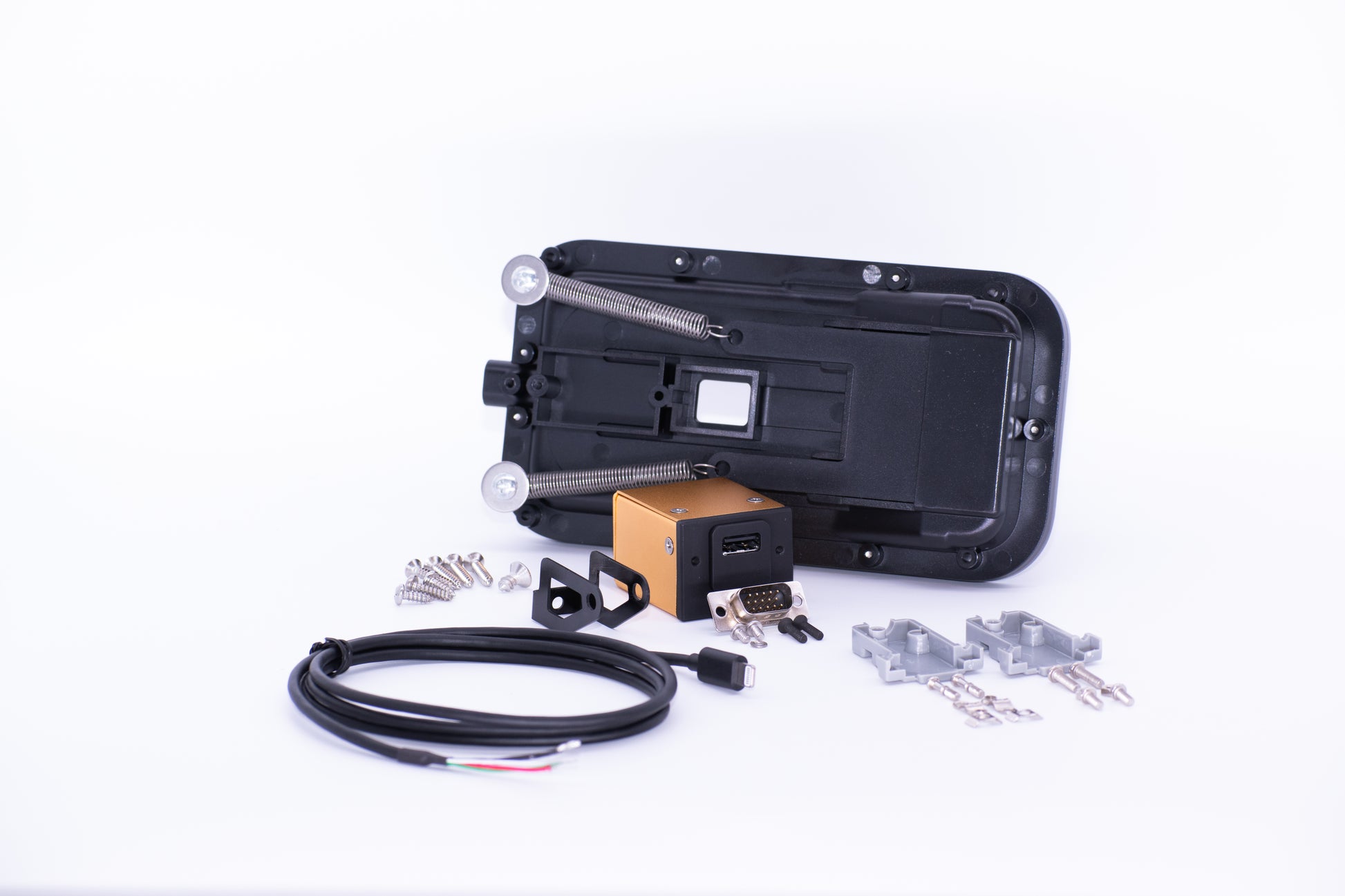

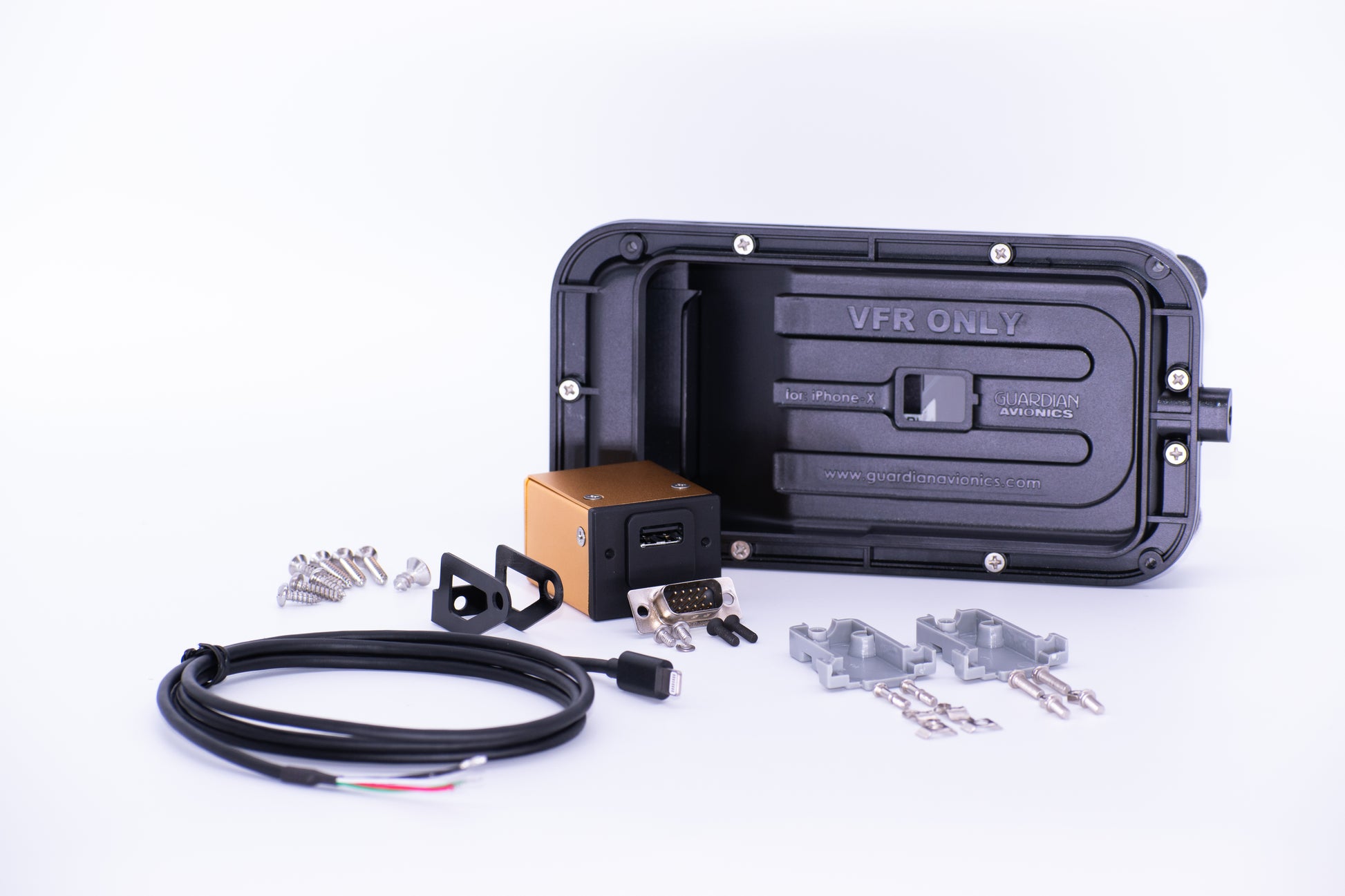

Full Package Includes:

• smartPanel Mount for iPhone X

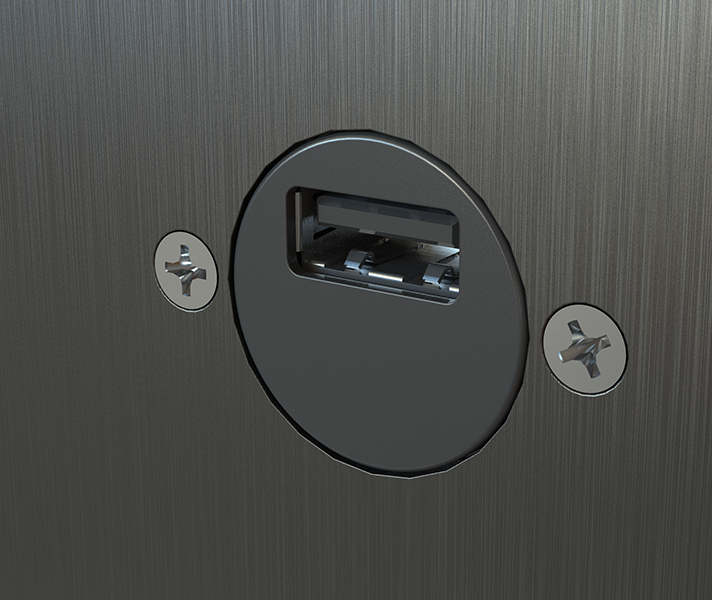

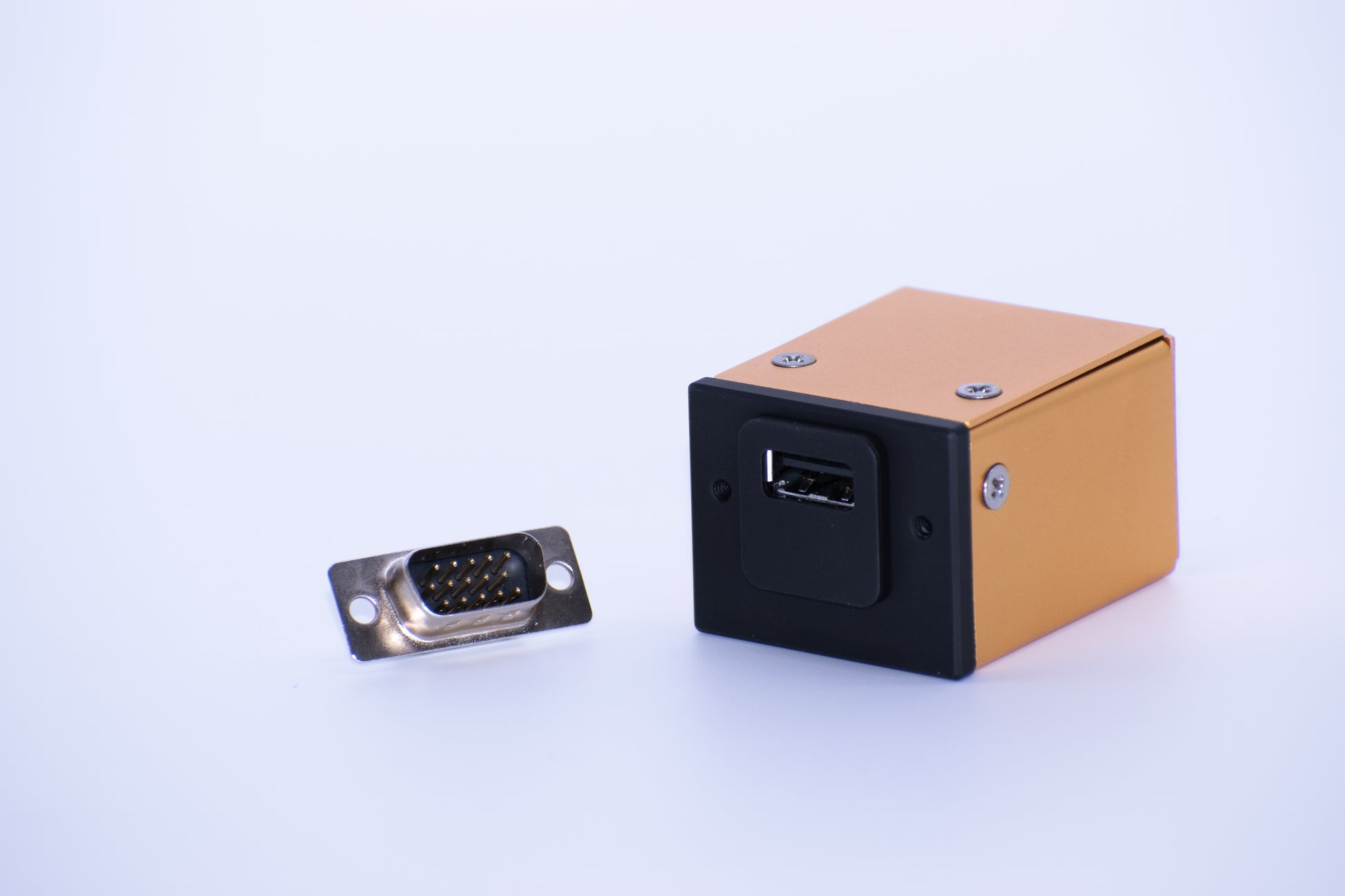

• smartPower 150-101 2.7 amp Power Supply with a Single USB-A Port (Powers Mount and USB Port)
• Apple MFi Lightning Cable with Open Wire Termination
• D-Sub 15-pin Solder Connector
• D-Sub Cable Shield

The smartPanel Mount Package for Apple iPhone X is a flush mounting system to easily dock and seamlessly integrate your existing iPhone X into your
aircraft instrument panel, giving it a clean, professional appearance in an easy to view position! Once installed, the smartPanel mount allows your iPhone to be docked in seconds, fully powered and ready for use, and able to be removed in seconds when done!

If you were to buy all the components in this package on their own, you would spend $429 -- at $379, this money-saving package includes everything you will need to install and integrate the iPhone X with your aircraft - panel mount, 2.7 amp power supply with a panel USB-A port,
and power and audio cables included.

Compatible with all models of the iPhone X, the smartPanel Mount allows you to transform your new or existing panel and use the newest iPhone model in the cockpit, fully integrated with your instrument panel. Your charts
and approach plates are in easy sight for reference and you can even use your iPad as a small multi-function display with the many popular iOS aviation apps available.

Power supplies may be installed as a minor alteration. Please refer to this link for the Guardian Avionics NORSEE Letter of Authorization.

Designed for General Aviation in mind.

The smartPanel Mount for iPhone X was designed by aerospace engineers to perform in the unique environment of the cockpit. The spring actuated mounting cradle securely holds the iPhone in place during the roughest
of turbulence. The clean, flush mount has a shallow chassis allowing it to be easily installed in even the smallest of instrument panels. Built-in ports for the included Apple Lightning cable and 3.5mm audio cable in the package will keep cables safely and securely positioned behind the panel, allowing you the ability to connect to power, data,
and audio without the cord mess.

Packaged with smartPower 250-101 Power Supply

The smartPanel Mount Package for iPhone X includes the 250-101 Dual 2.7 amp Power Supply to provide power to the mount and your iPhone X along with a USB-A port in the panel! The smartPower 250-101 converts all aircraft
voltages from 9 to 48 volts (including common 12, 14, and 24 volt systems) and transforms it to 5 VDC at 2.7 amps (12 watt) to keep your iPhone X powered and charging through all phases of flight as well as another product via the panel port.

Keep it cool.

As they are being used, iPhones generate heat that can affect performance -- resulting in a high-temperature shut down when you might need it most! Pilots have found this out the hard way when using a temporary mounting solution like Velcro to attach their unit to the instrument panel. The smartPanel Mount was designed with cooling in mind. Each
mount has a built-in Fan Blower (14 or 28V) capable of supplying 4.6 cubic feet per minute of air and because it is powered by the aircraft you will not run out of battery. Each panel mounting tray features cooling channels to circulate Fan Blower air behind your iPad to keep it cool even under the heaviest of use.

Simple installation.

The smartPanel Mount is designed for easy installation in your panel. Each durable molded ABS plastic unit is self-contained and mounts with only four screws. Our installation drawings give you the exact panel cutout
details and screw positions in either PDF or AutoCAD DXF for precise cuts. Mount in Automobiles, Boats, RVs, and Displays too!

Though the smartPanel Mount Package for iPhone X was designed for use in aircraft, the durable constructionand well-designed flush mount can be used easily for a wide variety of applications -- wherever there is a flat surface!

• Automobile - - A great custom dashboard mount for custom cars, auto restorations, or to incorporate into your own upgrade design to customize your car or truck.
  An easy way to add a clean and custom navigation display in any vehicle!
• Marine / Boats - The thin profile flush mount works well to create a custom bridge display in your boat,
  yacht, or watercraft for charts, weather, and navigation information. Mount in the wall of your cabin for a space-saving entertainment / communication / information system!
• Recreational Vehicles (RVs) and Campers - Create
  a custom mount in the wall of your trailer, RV, or mobile home to have a simple entertainment and communication system while saving space!
• Displays / Office / Home Use - An easy-to-install custom flush mount to add to trade show displays,
  retail kiosks, educational exhibits, home entertainment systems, and home management systems.
