smartPanel Mount and Remote Power Supply Package for Apple iPad Mini 6 with USB-C power supply

smartPanel Mount Package for Apple iPad Mini 6 For Both FAA Certified and Experimental Aircraft - Includes Panel Mount, 150-301 2.7 Amp Power Supply, Lightning Cable, and 3.5mm Audio Cable

Full Package Includes:

• smartPanel Mount for iPad Mini
• smartPower 75-83 3.2 amp Single USB-C Power Supply (Powers Mount Only)
• Apple Single USB-C cable
• D-Sub 15-pin Solder Connector
• D-Sub Cable Shield

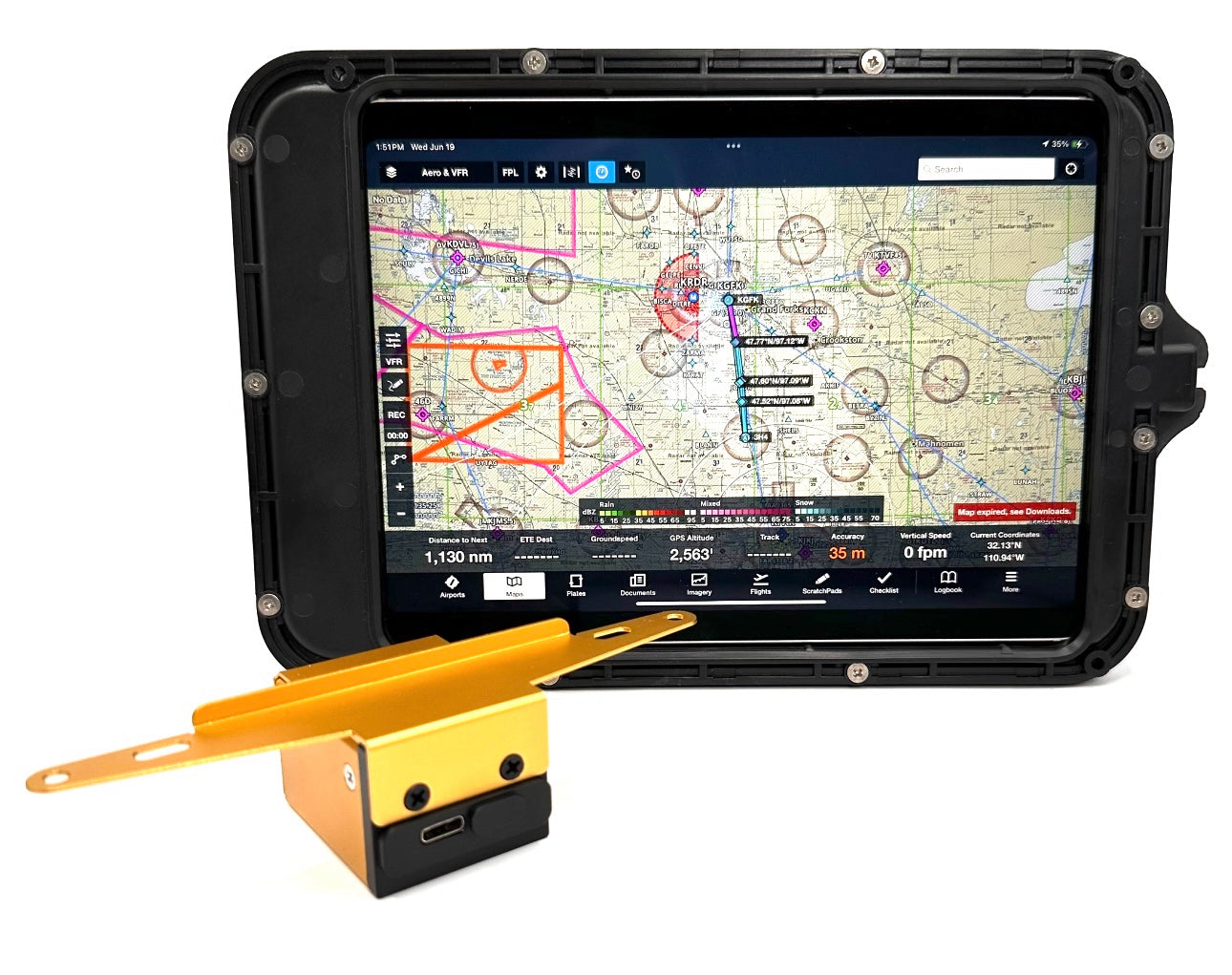

The smartPanel Mount Package for Apple iPad Mini is a flush mounting system to easily dock and seamlessly integrate your existing iPad Mini into your aircraft instrument panel, giving it a clean, professional appearance in an easy to view position! Once installed, the smartPanel mount allows your iPad to be docked in seconds, fully connected to the included 2.7 amp power supply and audio with built-in cable ports. Removal is just as easy -- just slide, push, and remove!

If you were to buy all the components in this package on their own, you would spend $399 -- at $349, this money-saving package includes everything you will need to install and integrate the iPad Mini with your aircraft - panel mount, 3.2 amp power supply, and power and audio
cables included.

Compatible with all models of iPad Mini 6, the smartPanel Mount allows you to transform your new or existing panel and use the most popular iPad for aviation in the
cockpit, fully integrated with your instrument panel. Your charts and approach plates are in easy sight for reference and you can even use your iPad Mini as a small multi-function display with the many popular iOS aviation apps available.

Now Approved for FAA Certified Part 23 Aircraft and Part 27 and 29 Rotorcraft

All smartPanel Mounts and Power Supplies from Guardian Avionics are approved for installation in certified aircraft and rotorcraft under 14 CFR Part 23, 27 and 29 as "Non-Required Safety Enhancing Equipment" (NORSEE) as outlined in FAA memorandum number PS-AIR-21.8-1602. Mounts and power supplies may be installed as a minor alteration. Please refer to this link for the Guardian Avionics NORSEE Letter of Authorization.

Designed for General Aviation in mind.

The smartPanel Mount for iPad Mini was designed by aerospace engineers to perform in the unique environment of the cockpit. The spring actuated mounting cradle securely holds the iPad in place during the roughest of
turbulence. The clean, flush mount has a shallow chassis allowing it to be easily installed in even the smallest of instrument panels. Built-in ports for the included Apple Lightning cable and 3.5mm audio cable in the package will keep cables safely and securely positioned behind the
panel, allowing you the ability to connect to power, data, and audio without the cord mess. The included smartPower 150-301 power supply will convert any aircraft power from 9 to 48 volts down to the 5 volt, 2.7 amp power needed to power and charge your iPad Mini.

Packaged with smartPower USB-C Power Supply

The smartPanel Mount Package for iPad Mini includes the smartPower 75-83 Single USB Power Supply to provide power to the mount and your iPad Mini! The smartPower 75-83 is a remote mounted Single USB-C type power /
charging unit designed to mount directly on the included mounting positions on the back of the iPad Mini mount. The smartPower 75-83 provides 3.2 amps at 12VDC ± 0.25 (38.4 watt) (Maximum) to keep your iPad Mini powered and charging through all phases of flight.

Simple installation.

The smartPanel Mount is designed for easy installation in your panel. Each durable molded ABS plastic unit is self-contained and mounts with only four screws. Our installation drawings give you the exact panel cutout
details and screw positions in either PDF or AutoCAD DXF for precise cuts. The smartPanel Mount for iPad Mini requires a 7.834" long and 5.679" high panel cutout and can be mounted either horizontally or vertically.

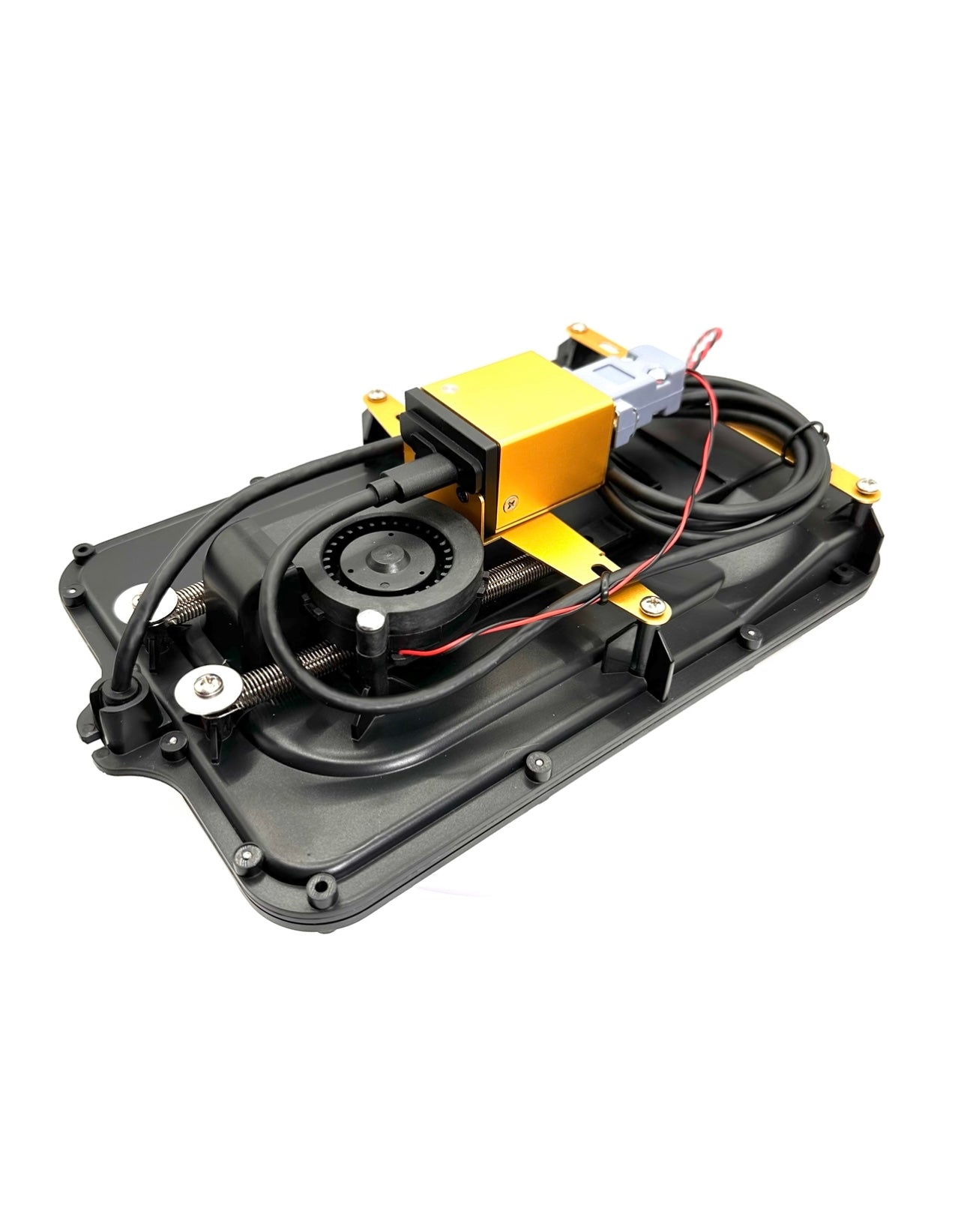

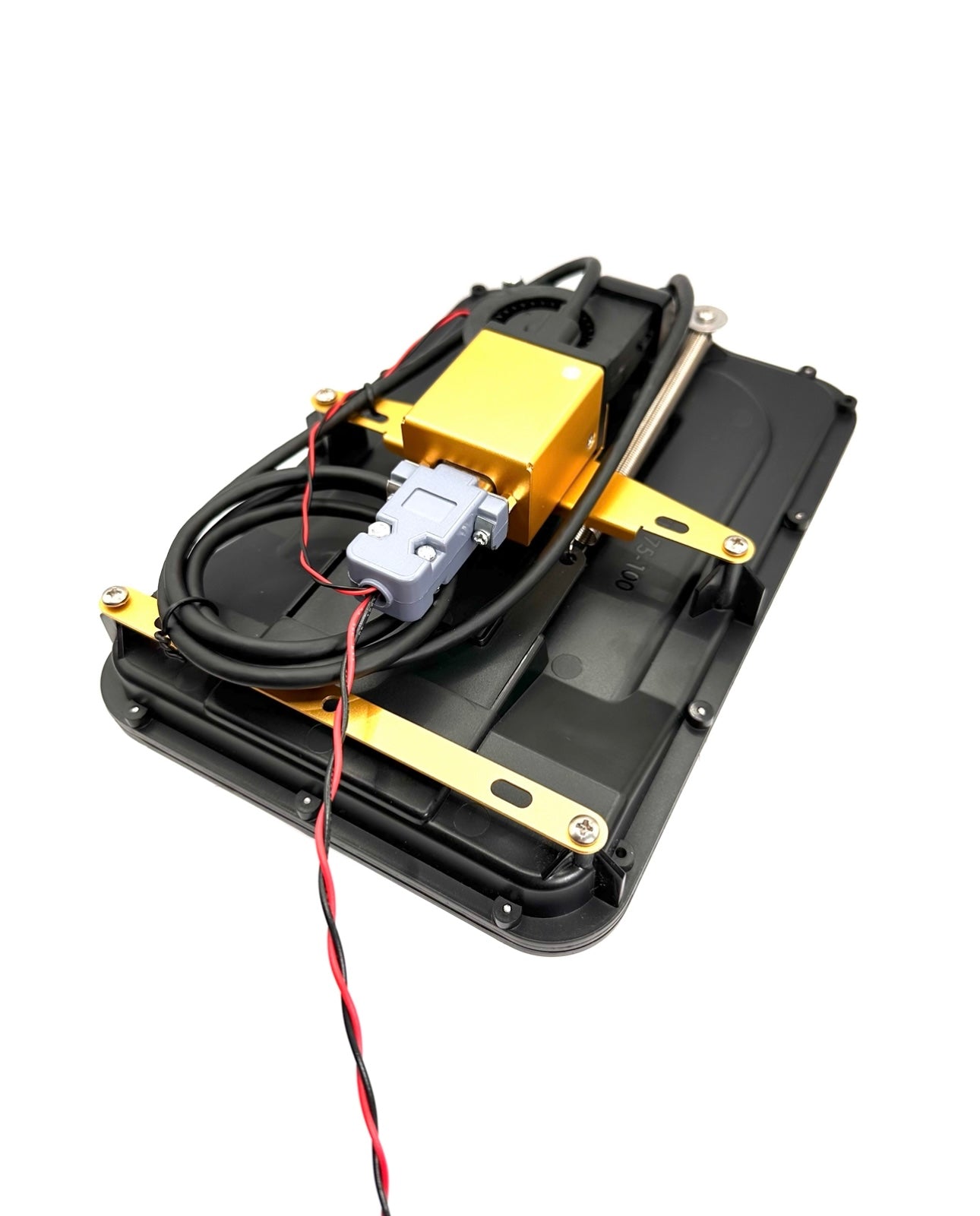

The included smartPower 75-83 Single USB-C 3.2 amp power supply mounts directly on the back of the
panel mount, simplifying installation even further!

Mount in Automobiles, Boats, RVs, and Displays too!

Though the smartPanel Mount Package for iPad Mini was designed for use in aircraft, the durable construction and well-designed flush mount can be used easily for a wide variety of applications -- wherever there is a flat surface!

• Automobile - - A great custom dashboard mount for custom cars, auto restorations, or to incorporate into your own upgrade design to customize your car or truck.
  An easy way to add a clean and custom navigation display in any vehicle!
• Marine / Boats - The thin profile flush mount works well to create a custom bridge display in your boat,
  yacht, or watercraft for charts, weather, and navigation information. Mount in the wall of your cabin for a space-saving entertainment / communication / information system!
• Recreational Vehicles (RVs) and Campers - Create
  a custom mount in the wall of your trailer, RV, or mobile home to have a simple entertainment and communication system while saving space!
• Displays / Office / Home Use - An easy-to-install custom flush mount to add to trade show displays,
  retail kiosks, educational exhibits, home entertainment systems, and home management systems.
