smartPanel Mount + Power Supply Package for Apple iPad Pro 10.5-inch / iPad Air 3rd Gen (Lightning)

smartPanel Mount Package for iPad Pro 10.5-inch / iPad Air 3rd Gen

Includes Panel Mount, 150-301 2.7 Amp Power Supply, Fan Blower, Lightning Cable, and 3.5mm Audio Cable

Fits iPad Models:

• Pro 10.5" (A1701, A1709)
• iPad Air 3 (A2152, A2153)

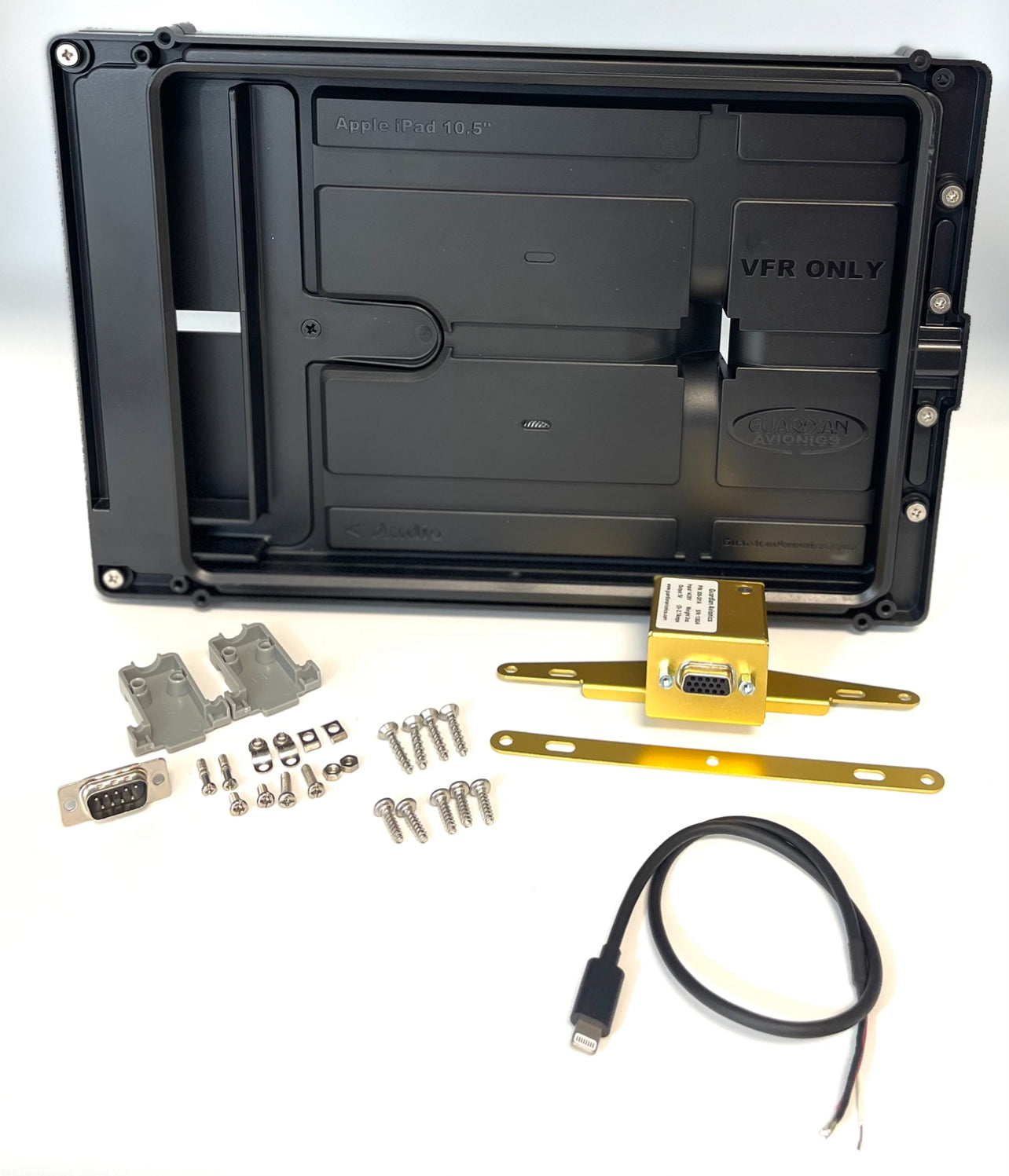

Full Package Includes:

• smartPanel Mount for iPad Pro 10.5-in
• smartPower 150-301 2.7 amp Single Power Supply (Powers Mount Only)
• 14 or 28V fan blower power supply
• Apple MFi Lightning Cable with Open Wire Termination
• 3.5mm Audio Cable with Open Wire Termination
• D-Sub 15-pin Solder Connector
• D-Sub Cable Shield

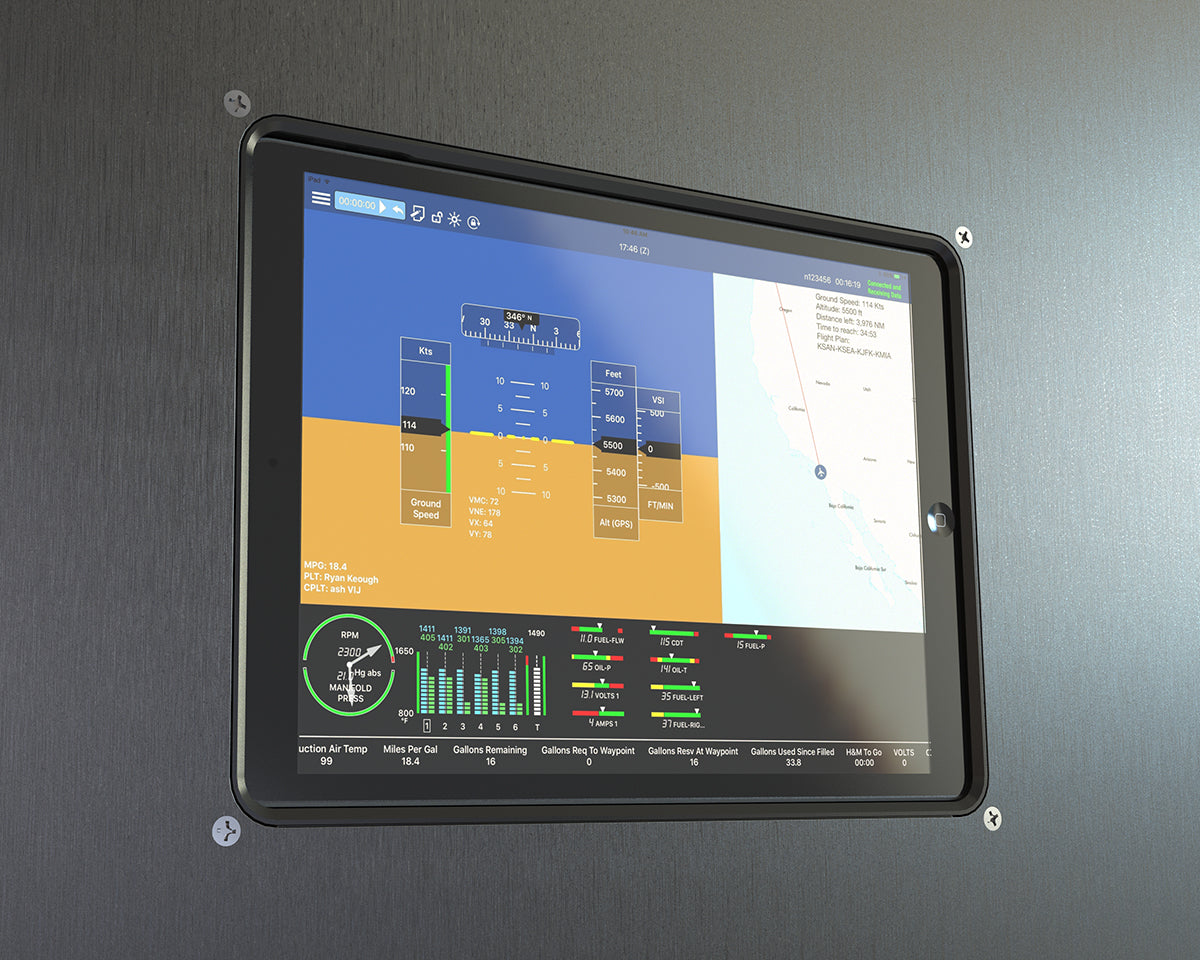

The smartPanel Mount Package for Apple iPad Pro 10.5-in is a flush mounting system to easily dock and seamlessly integrate your existing iPad Pro 10.5" into your aircraft instrument panel, giving it a clean, professional appearance in an easy to view position! Once installed, the smartPanel mount allows your iPad to be docked in seconds, fully connected to the included 2.7 amp power supply and audio with built-in cable ports. Removal is just as easy -- just slide, push, and remove!

If you were to buy all the components in this pakage on their own, you would spend $499 -- at $449, this money-saving package includes everything you will need to install and integrate the iPad Pro 10.5-in with your aircraft - panel mount, 2.7 amp power supply, fan blower, and power and audio cables included.

Compatible with all models of iPad 10.5-in size, the smartPanel Mount allows you to transform your new or existing panel and use the most recommended iPad size for aviation in the cockpit, fully integrated with your instrument panel. Your charts and approach plates are in easy sight for
reference and you can even use your iPad Pro 10.5-in as a multi-function display with the many popular iOS aviation apps available.

Power supplies may be installed as a minor alteration.

Designed for General Aviation in mind.

The smartPanel Mount for iPad Pro 10.5-in was designed by aerospace engineers to perform in the unique environment of the cockpit. The spring actuated mounting cradle securely holds the iPad in place during the roughest of turbulence. The clean, flush mount has a shallow chassis allowing it to be easily installed in even the smallest of instrument panels. Built-in ports for the included Apple Lightning cable and 3.5mm audio cable in the package will keep cables safely and securely positioned behind the panel, allowing you the ability to connect to
power, data, and audio without the cord mess. The included smartPower 150-301 power supply will convert any aircraft power from 9 to 48 volts down to the 5 volt, 2.7 amp power needed to power and charge your iPad Pro 10.5 in.

Packaged with smartPower 150-301 Power Supply

The smartPanel Mount Package for iPad Pro 10.5-inch / iPad Air 3rd Gen. includes the Power 150-301 Single USB Power Supply to provide power to the mount and your iPad Pro! The smartPower 150-301 is a remote mounted Single USB type
power / charging unit designed to mount directly on the included mounting positions on the back of the iPad Pro 10.5-in. The smartPower 150-301 provides 2.7 amps at 5 VDC (10 watt) to keep your iPad powered and charging through all phases of flight. The package also includes the Apple MFi Certified Lightning Cable and the 3.5mm Audio Cable.

Keep it cool.

As they are being used, iPads generate heat that can affect performance -- resulting in a high-temperature shut down when you might need it most! Pilots have found this out the hard way when using a temporary mounting
solution like Velcro to attach their unit to the instrument panel. The smartPanel Mount was designed with cooling in mind. Each mount has a built-in Fan Blower (14 or 28V) capable of supplying 4.6 cubic feet per minute of air and because it is powered by the aircraft you will not run out of battery. Each panel mounting tray features cooling channels to circulate Fan Blower air behind your iPad to keep it cool even under the heaviest of use.

Simple installation.

The smartPanel Mount is designed for easy installation in your panel. Each durable molded ABS plastic unit is self-contained and mounts with only four screws. Our installation drawings give you the exact panel cutout
details and screw positions in either PDF or AutoCAD DXF for precise cuts.

The included smartPower 150-301 Single USB 2.7 amp power supply mounts directly on the back of the panel mount, simplifying installation even further!

Both the Lightning Cable and Audio Cable mount directly in the specially designed ports in the iPad mount.

Mount in Automobiles, Boats, RVs, and Displays too!

Though the smartPanel Mount Package for iPad Pro 10.5-in. was designed for use in aircraft, the durable construction and well-designed flush mount can be used easily for a wide variety of applications -- wherever there is a
flat surface!

• Automobile - - A great custom dashboard mount for custom cars, auto restorations, or to incorporate into your own upgrade design to customize your car or truck.
  An easy way to add a clean and custom navigation display in any vehicle!
• Marine / Boats - The thin profile flush mount works well to create a custom bridge display in your boat,
  yacht, or watercraft for charts, weather, and navigation information. Mount in the wall of your cabin for a space-saving entertainment / communication / information system!
• Recreational Vehicles (RVs) and Campers - Create
  a custom mount in the wall of your trailer, RV, or mobile home to have a simple entertainment and communication system while saving space!
• Displays / Office / Home Use - An easy-to-install custom flush mount to add to trade show displays, retail kiosks, educational exhibits, home entertainment systems, and
  home management systems.
