smartPanel Mount + Panel USB Port Package for Apple iPad Mini 6th Gen / A17 Pro

This package powers your iPad mount and adds a 2.7A USB-A port directly in your instrument panel — wired from the same power supply. Keep a phone, GPS, or ADS-B receiver charged without running separate wiring. Adding the panel USB port separately costs $249; this package includes it for $50 more than the Mount + Power Supply Package ($449), saving you $199.

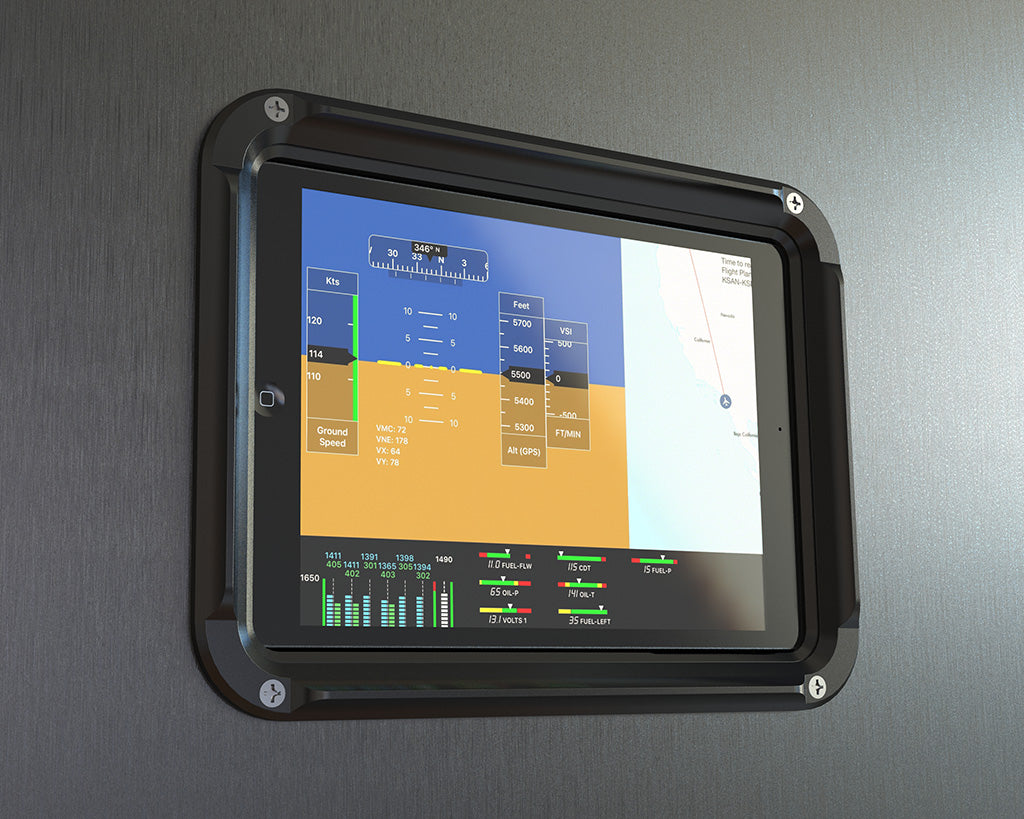

Trim bezel available for +$35.

smartPanel Mount Package for Apple Mini 6th Gen / A17 Pro For Both FAA Certified and Experimental Aircraft - Includes Panel Mount, 250-301 2.7 Amp Power Supply to Power Mount Plus Add a Single Panel USB
Port, USB-C Cable.

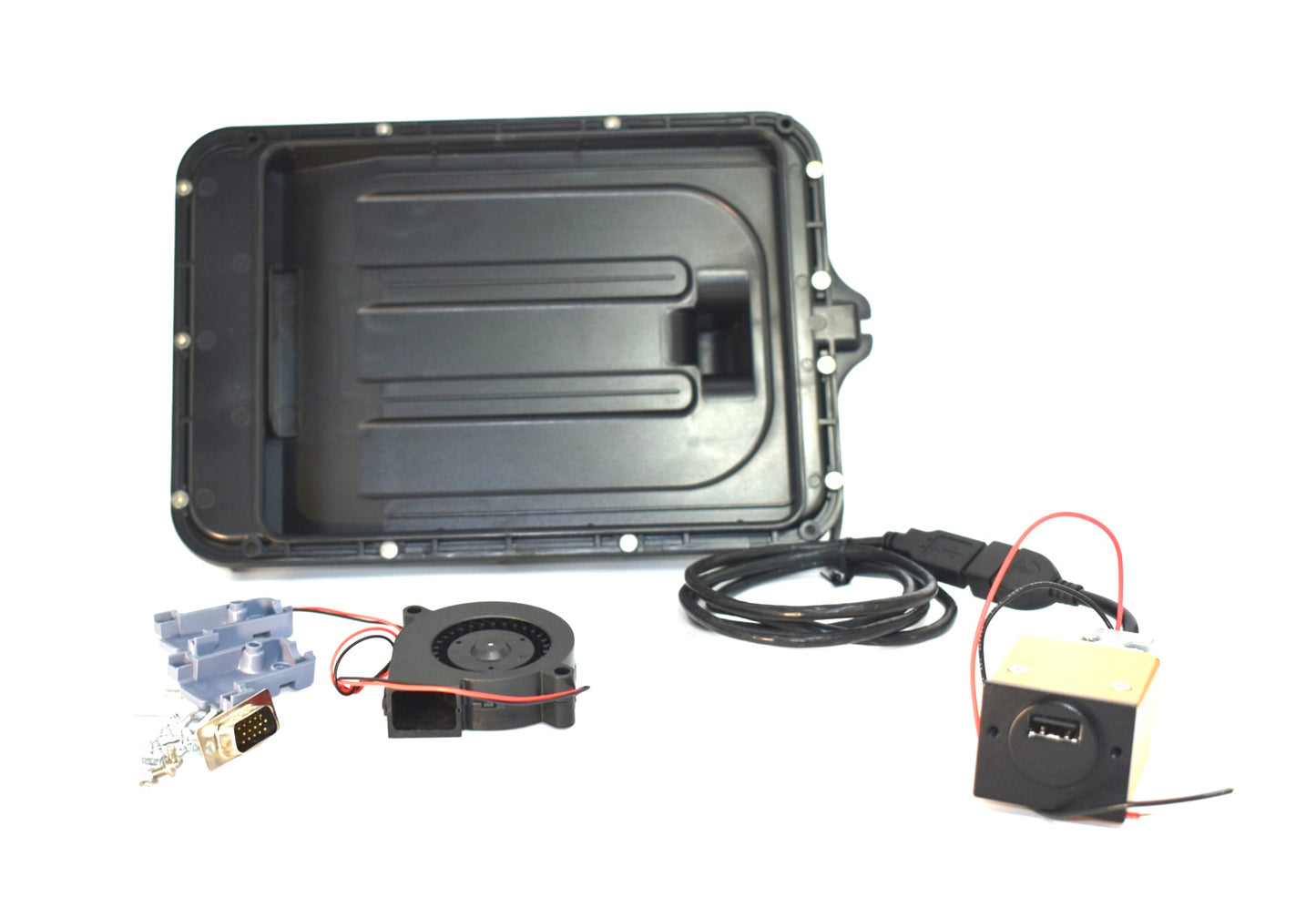

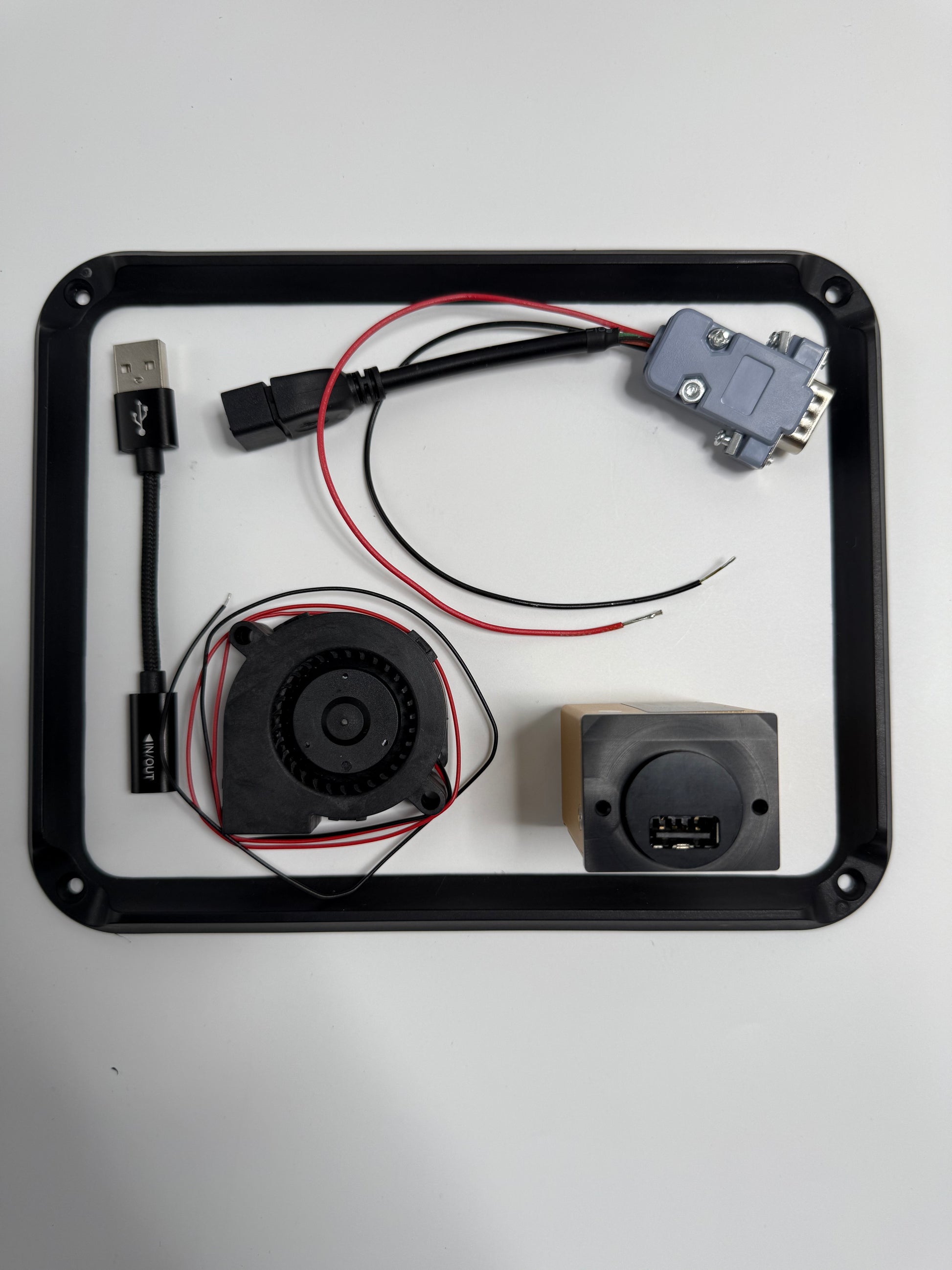

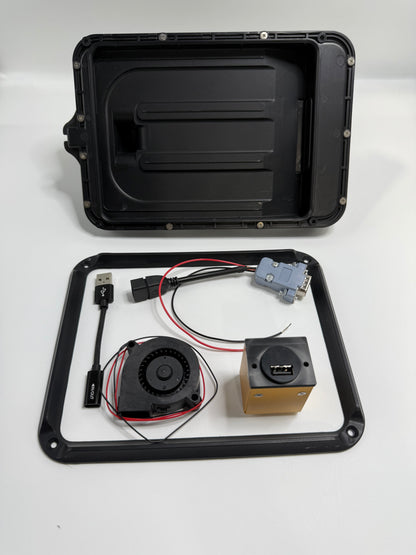

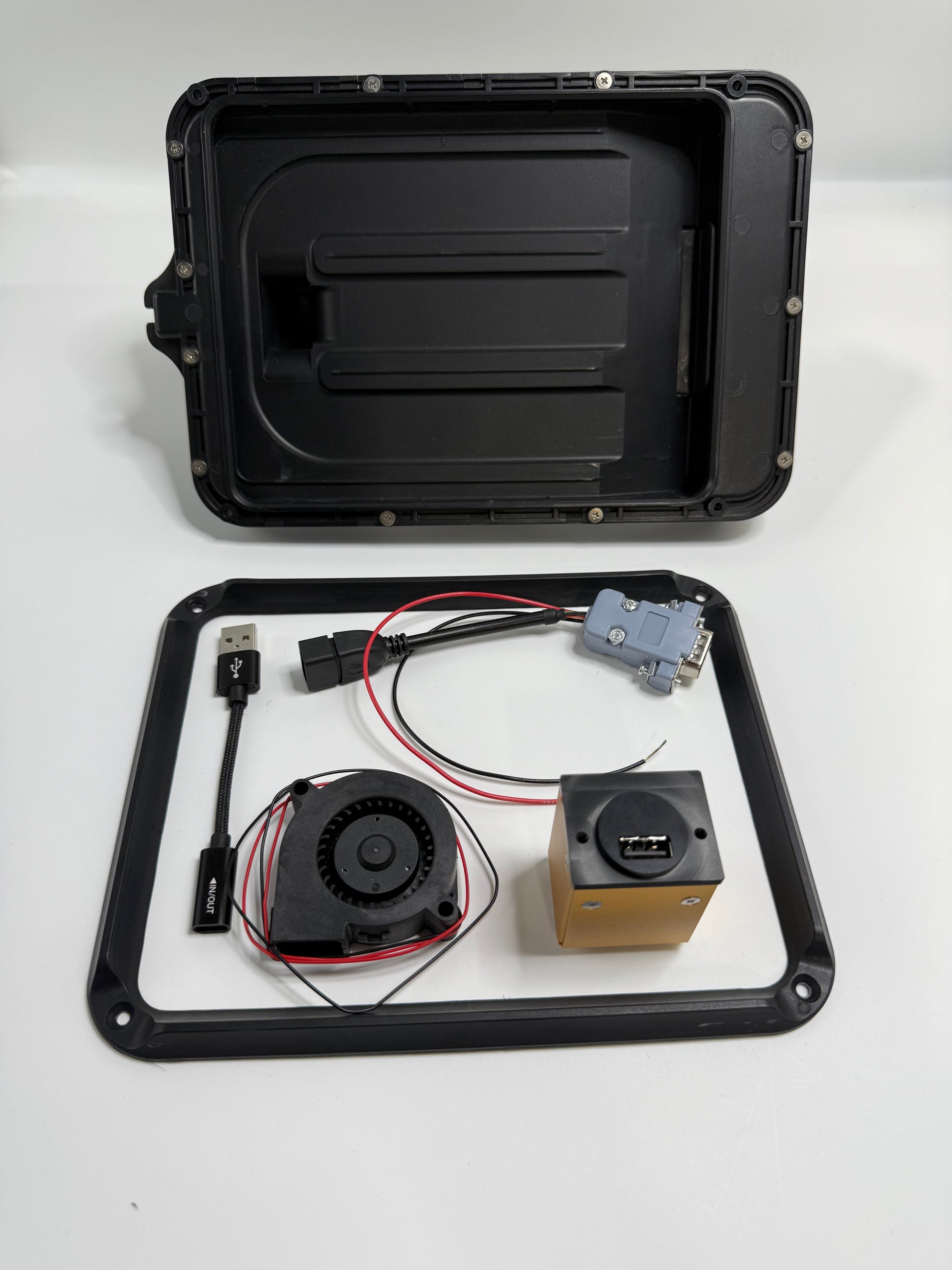

Full Package Includes:

• smartPanel Mount for iPad Mini
• smartPower 250-101 3.2 amp Power Supply with a Single USB-A Port (Powers Mount and USB Port)

• The smartPanel Mount Package for Apple iPad Mini
  is a flush mounting system to easily dock and seamlessly integrate your existing iPad Mini into your aircraft instrument panel, giving it a clean, professional appearance in an easy to view position! Once installed, the smartPanel mount allows your iPad to be docked in seconds, fully powered and ready for use, and able to be removed in seconds when done! Also you can connect your headset to the iPad via Bluetooth.

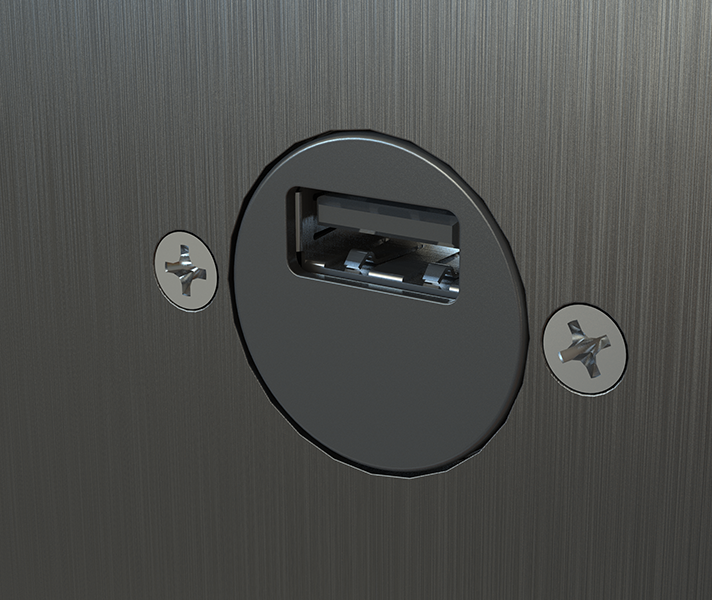

This package gives you the mount along with a panel mounted single 2.7 amp USB-A port that also features a hard-wired 2.7 amp connection from the rear to power the iPad mount! This way you can provide power to an external component like a phone or GPS/ADS-B receiver while keeping your iPad charged! Choose from a Single USB Round Faceplate or Single USB Square Faceplate.

The package also includes the USB-C cable to power the iPad.

If you were to buy all the components in this package on their own, you would spend $576.99 -- at $499, this money-saving package saves you $77.99. Or compare it another way: adding the panel USB port separately after buying the $449 package would cost $698 total — this package includes everything for $499, saving you $199.

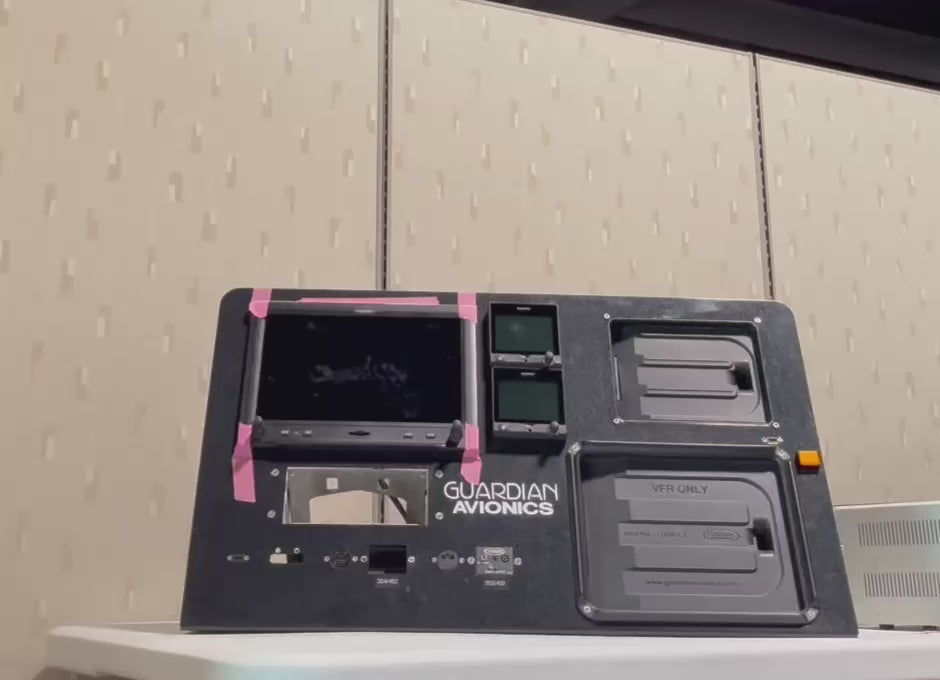

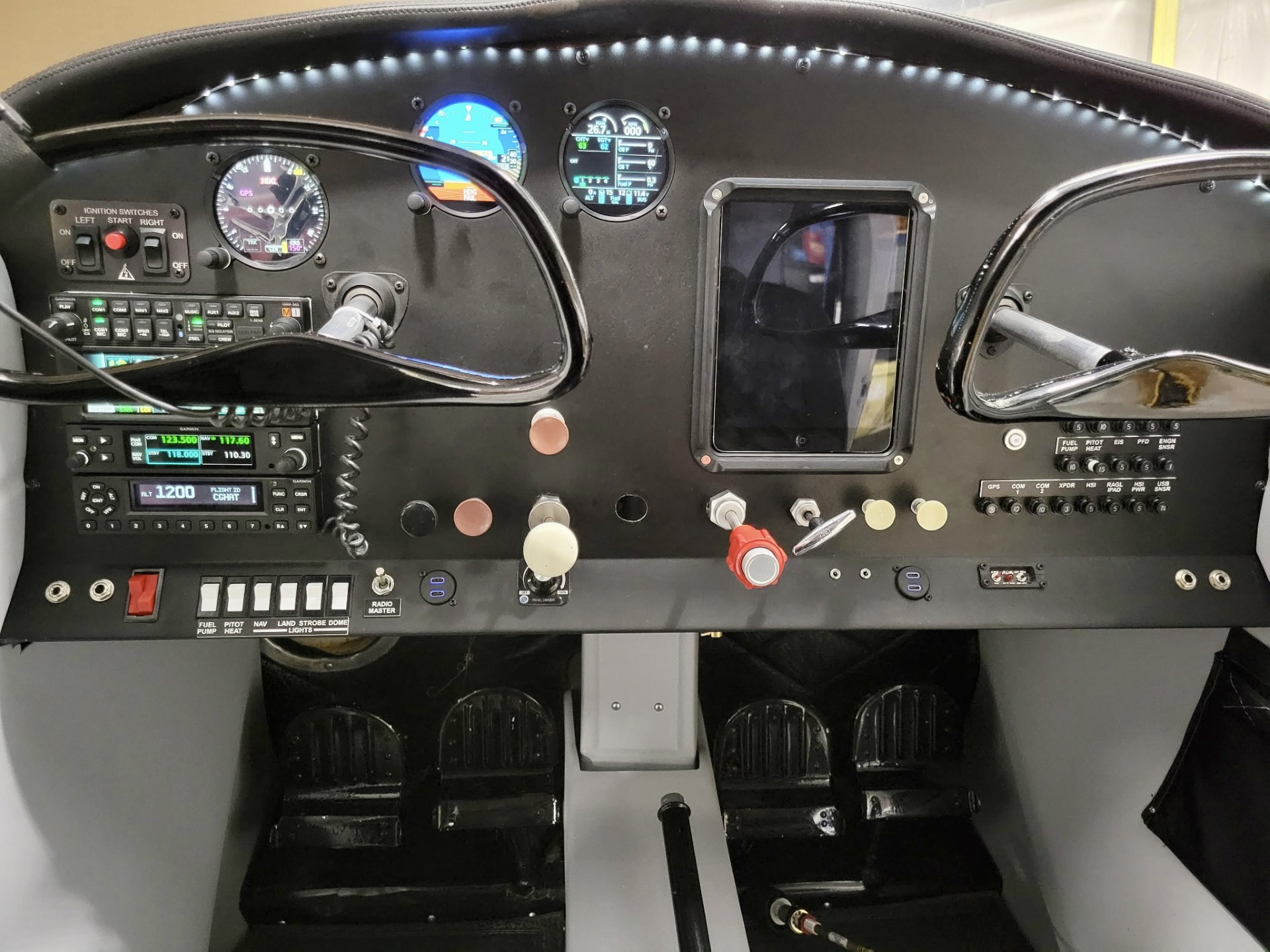

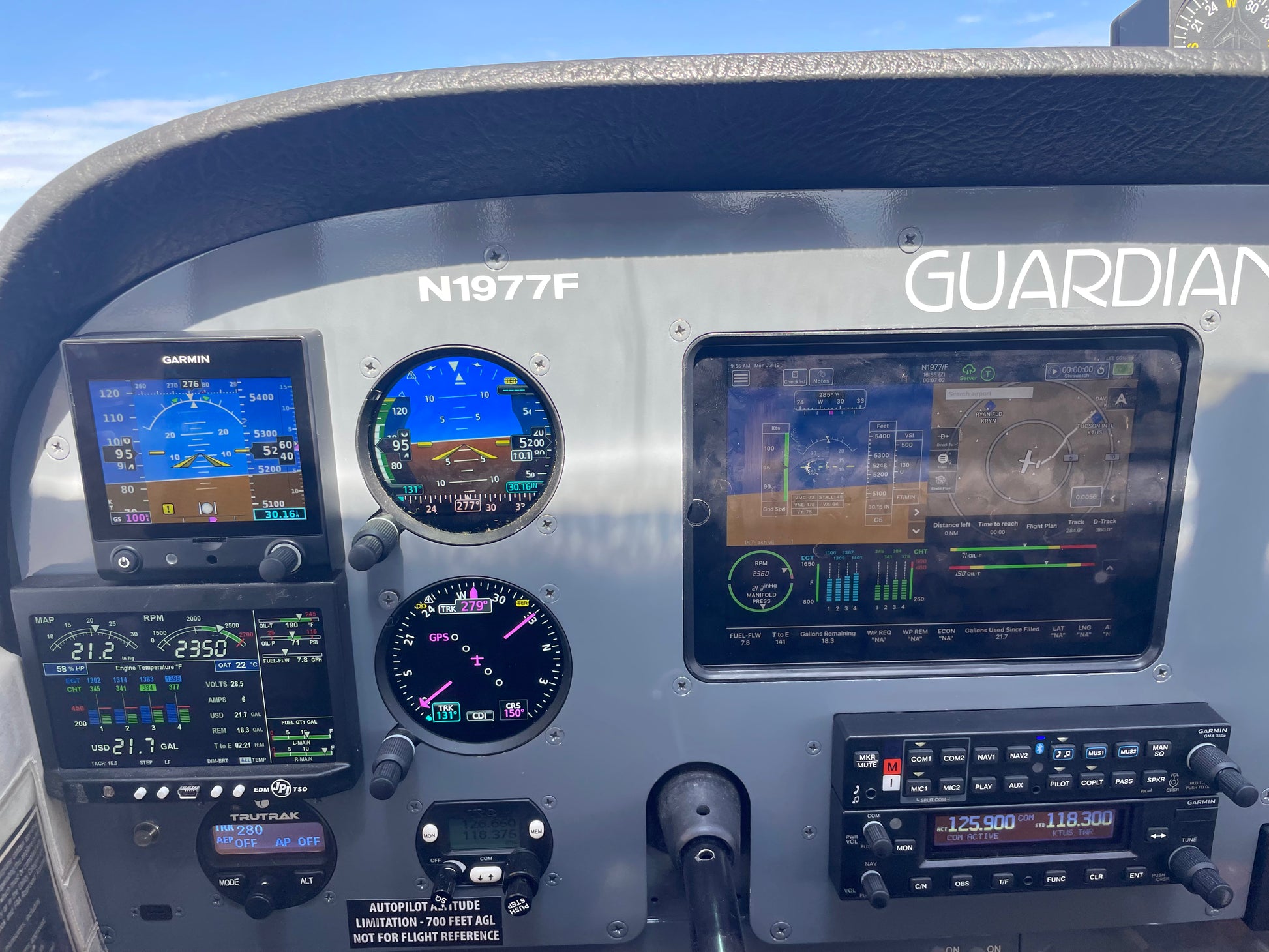

Compatible with iPad Mini 6th Gen / A17 Pro, the smartPanel Mount allows you to transform your new or existing panel and use the most popular iPad for aviation in the cockpit, fully integrated with your instrument panel. Your charts and approach plates are in easy sight for reference and you can even use your iPad Mini as a small multi-function display with the many popular iOS aviation apps available.

Now Approved for FAA Certified Part 23 Aircraft and Part 27 and 29 Rotorcraft

All smartPanel Mounts and Power Supplies from
Guardian Avionics are approved for installation in certified aircraft and rotorcraft under 14 CFR Part 23, 27 and 29 as "Non-Required Safety Enhancing Equipment" (NORSEE) as outlined in FAA memorandum number PS-AIR-21.8-1602. Mounts and power supplies may be installed as a minor
alteration.

Designed for General Aviation in mind.

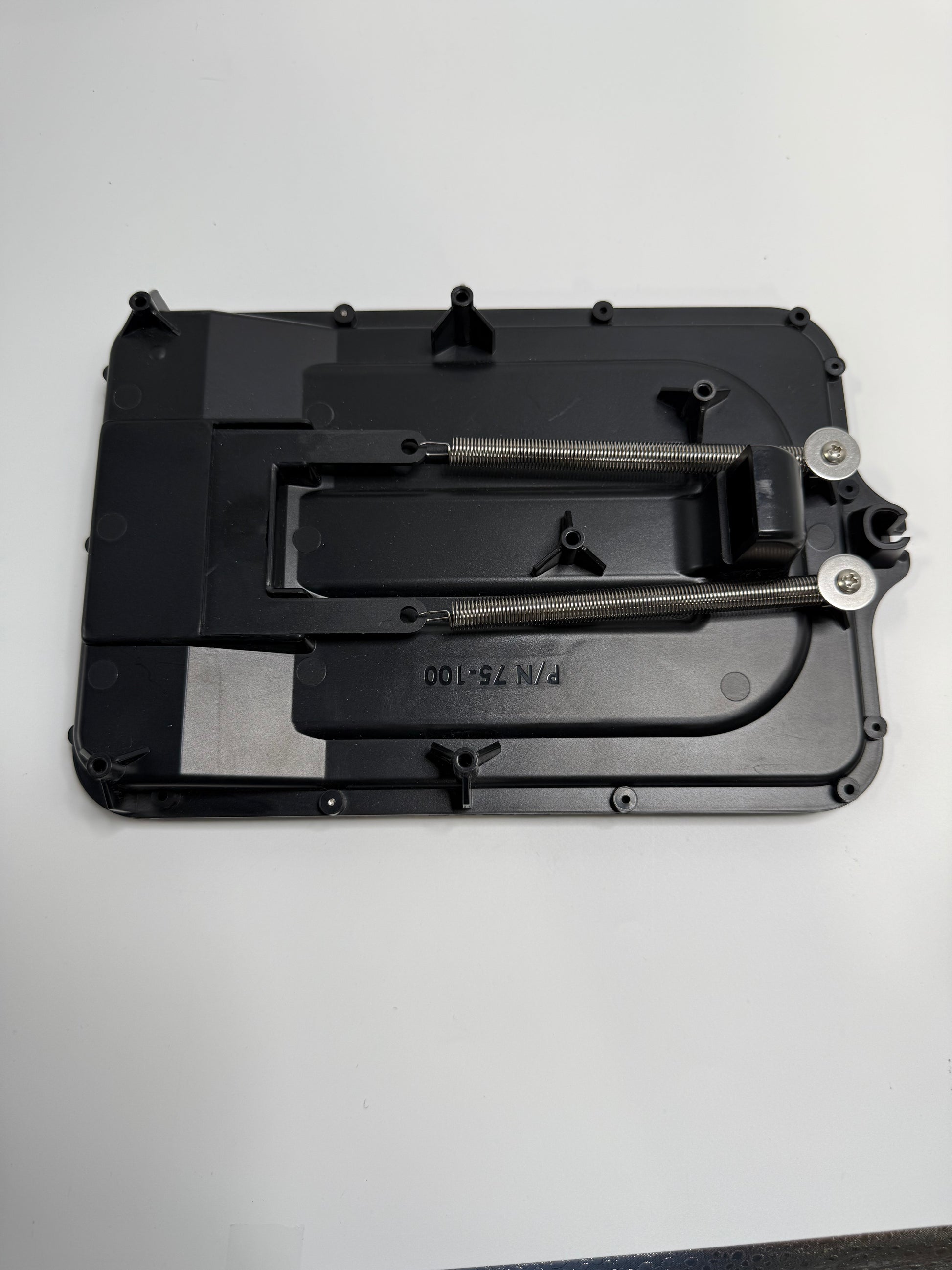

The smartPanel Mount for iPad Mini was designed
by aerospace engineers to perform in the unique environment of the cockpit. The spring actuated mounting cradle securely holds the iPad in place during the roughest of turbulence. The clean, flush mount has a shallow chassis allowing it to be easily installed in even the smallest
of instrument panels. The package will keep cables safely and securely positioned behind the panel, allowing you the ability to connect to power, data, and audio without the cord mess.

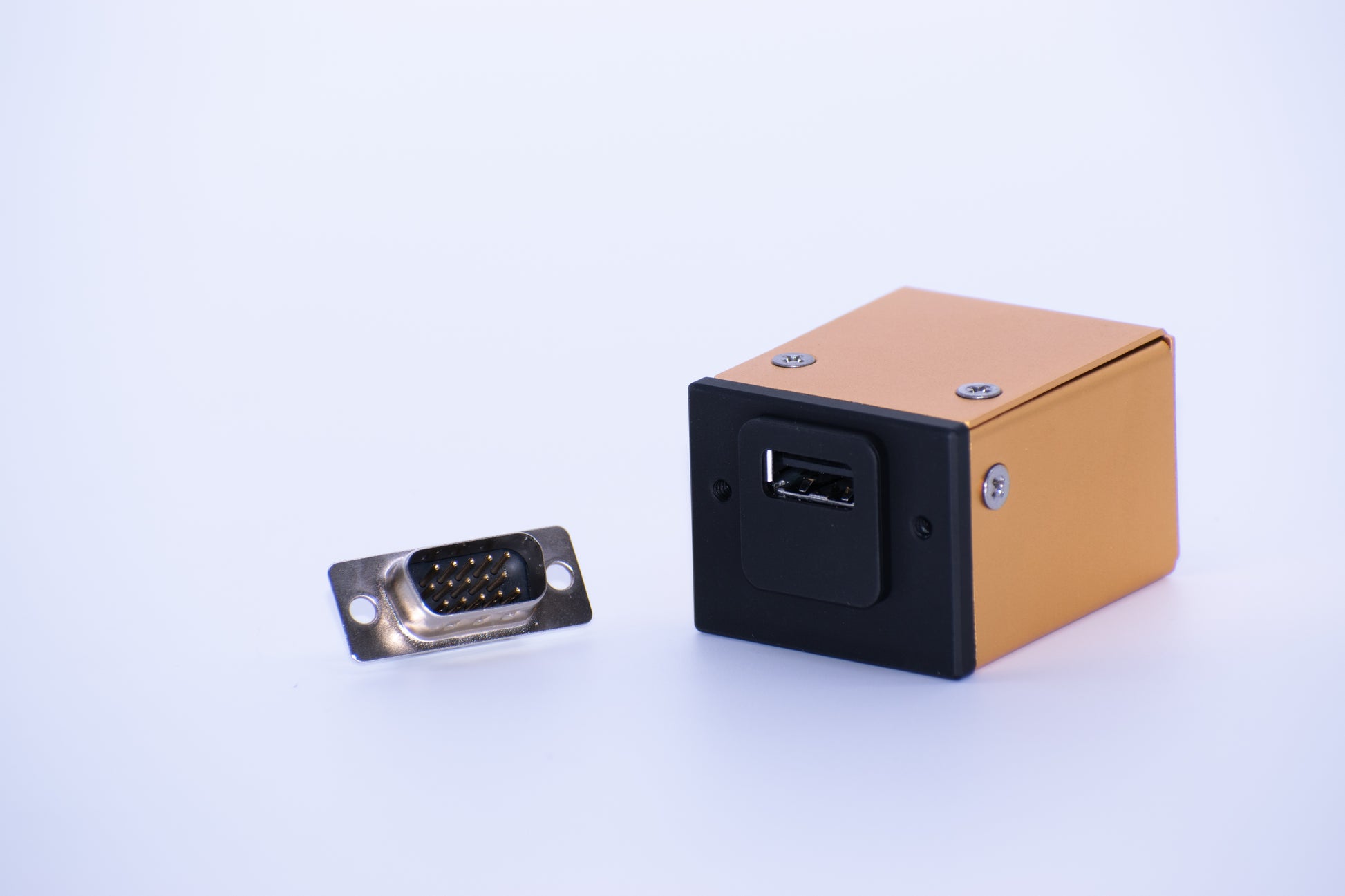

Packaged with smartPower 250-101 Power Supply

The smartPanel Mount Package for iPad Mini
includes the smartPower 250-101 Dual 2.7 amp Power Supply to provide power to the mount and your iPad Mini along with a USB-A port in the panel! The smartPower 250-101 converts all aircraft voltages from 9 to 48 volts (including common 12, 14, and 24 volt systems) and transforms it to 5 VDC at 2.7 amps (12 watt) to keep your iPad Mini powered and charging through all phases of flight as well as another product via the panel port.Simple installation.

The smartPanel Mount is designed for easy
installation in your panel. Each durable molded ABS plastic unit is self-contained and mounts with only four screws. Our installation drawings give you the exact panel cutout details and screw positions in either PDF or AutoCAD DXF for precise cuts. The smartPanel Mount for iPad Mini requires a 7.834" long and 5.679" high panel cutout and can be
mounted either horizontally or vertically.

Mount in Automobiles, Boats, RVs, and Displays too!

Though the smartPanel Mount Package for iPad Mini
was designed for use in aircraft, the durable construction and well-designed flush mount can be used easily for a wide variety of applications -- wherever there is a flat surface!

Automobile - - A great custom dashboard mount
for custom cars, auto restorations, or to incorporate into your own upgrade design to customize your car or truck. An easy way to add a clean and custom navigation display in any vehicle!

Marine / Boats - The thin profile flush mount
works well to create a custom bridge display in your boat, yacht, or watercraft for charts, weather, and navigation information. Mount in the wall of your cabin for a space-saving entertainment / communication / information system!

Recreational Vehicles (RVs) and Campers - Create a
custom mount in the wall of your trailer, RV, or mobile home to have a simple entertainment and communication system while saving space!

Displays / Office / Home Use - An easy-to-install
custom flush mount to add to trade show displays, retail kiosks, educational exhibits, home entertainment systems, and home management systems.
