Description

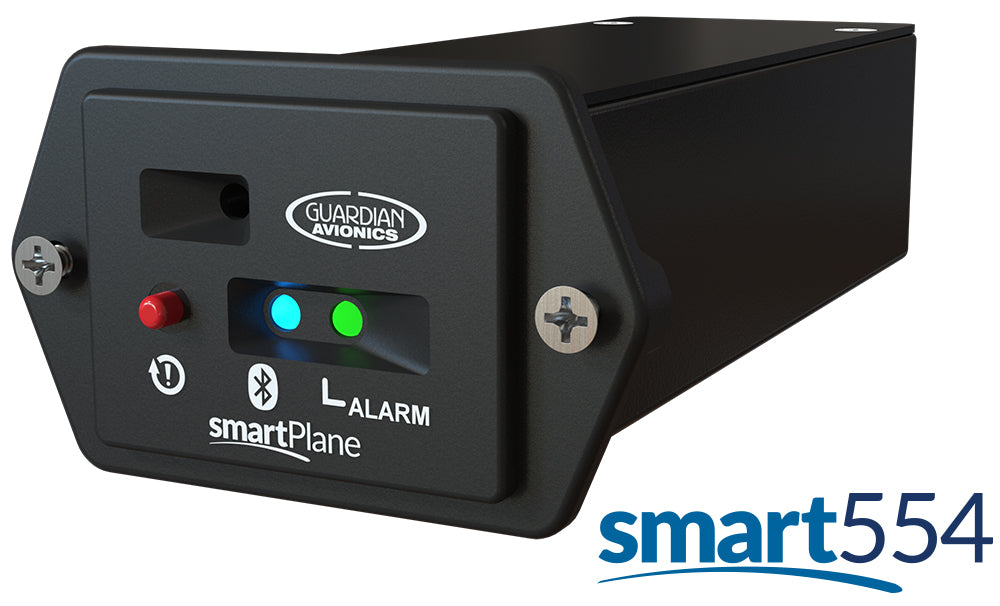

The smartLink 554-101 is a Flight Data Recorder,
CO Detector, and AHRS that works with the Guardian Avionics smartPlane system. This unit is panel mounted in a small 1 58" x 1 1/4" position (optional 2.25" round adapter plate available) to provide convenient visibility in-flight. The smartLink 554-101 communicates with the smartMFD iOS app via Bluetooth connection.
Start with the CO Poisoning Prevention that Guardian Avionics is Known For.
The smartLink 554-101 is built around the reliable and accurate Carbon Monoxide detection technology that Guardian Avionics and CO Guardian has been known for. The sensitive onboard CO sensor alarms an initial
warning when CO levels measure greater than 50 parts-per-million (PPM) up to 99 PPM. A persistent warning will trigger when levels climb above 99 PPM immediately when detected.
Your GPS, Engine Monitor, and Attitude Connect & Display on Your iPad & iPhone.
The smartLink 554-101 can be connected to your onboard GPS and Engine Monitor via RS-232, allowing accurate navigation and engine performance data to be aggregated, transmitted, displayed, and recorded on your iPad
and/or iPhone through the Guardian Avionics smartMFD app via a Bluetooth connection. The smartLink 554-201 also has a built-in AHRS (Attitude and Heading Reference System) for VFR use that will prove attitude data to the iOS. As a result, your iPad and iPhone become mini-multifunction displays -- fully equipped with accurate VFR and IFR maps and charts, rich graphical engine performance information, and even a mini-PFD/MFD for quick reference. All Carbon Monoxide alerts and
levels are also available on the smartMFD app too!
All Your Flight Data is Sent and Stored in the smartData Web App for You.
Through the smartMFD app, all of your flight data is stored and uploaded to your account on the Guardian Avionics smartData web app via 3G/4G/LTE or WiFi at the end of every flight, with the ability to download and view
flight tracks on programs like Google Earth, view engine data through rich charts and graphs, and even export your data for use through other programs or to send to others. If your iPad or iPhone is connected to your audio panel through a 3.5 mm audio jack, the app will even record
the audio from your intercom and upload it to your account for each flight too!
How can you use the data? See how accurate your recent practice approaches were on a recent flight. Send
trend data to your A&P or engine manufacturer to troubleshoot an issue. Evaluate all aspects of a recent training flight, including radio procedures.
Budget and Panel Space Friendly.
Equipping the smartLink 554-101 is like bundling multiple pieces of equipment into one compact, panel mounted unit. In the past you’d need to buy and install a CO detector, GPS signal booster, and backup AHRS for your iPad/iPhone as separate items – and flight data recording on an app for
both navigation and engine data was not even available! Now you can get all of that in one small, easy to install package for one reasonable price!
NORSEE Approved for Part 23 Aircraft Installation.
All smartPlane products from Guardian Avionics are approved for installation in certified aircraft under 14 CFR Part 23, 27 and 29 as "Non-Required Safety Enhancing Equipment" (NORSEE) as outlined in FAA memorandum number PS-AIR-21.8-1602. Installation requires only a minor
alteration logbook entry by the installing A&P mechanic or
inspector. Please click on this link to see all NORSEE authorization letters for Guardian Avionics aircraft.
Compatible GPS and Engine Data Systems
The smartLink 554 supports data input via RS-232 from the systems listed at this link.
Specifications
- Bluetooth® enabled: GPS data transmitted to tablets supported by Apple iOS
- Input Power 14/28 VDC
- Power Usage less than 1 Watt
- Temperature Range -20 °C to 55 °C
- Each unit is inspected and tested
- Humidity 5% to 95% RH (non-condensating)
- Circuit Breaker 2 Amp
- Design meets TSO-C48A
- Dimensions (approximate - inches): 4.5"L x 1.625"W x 1.25"H
- Weight 4 oz.
- Built-in Pressure Sensor provides cabin pressure altitude warnings at 10,000, 12,500 and 14,000 feet
- CO Sensor Tested to 25,000 feet and no effect to 40,000 feet
- Tone generator for headsets
- RS-232 output
- Internal fan for optimum CO sensing
- RS-232 output will display carbon monoxide levels or a warning on the following products:
Garmin: GNS480, G3X, G3X Touch, G900, and G1000
JPI: EDM 730, EDM 830, EDM 900 Primary, EDM 900 Experimental, EDM 960 Twin
Electronic Instruments: MVP50P, MVP-50T, CGR-30P
Advanced Flight System: AF2500/3500/4500/5000/5400/5500/5600/5800
Grand Rapids Technologies: Sports Series, Horizon HX, and HXr EFIS Systems
Ultra Electronics: AuRACLE CRM 2120
MGL Avionics: XTreme EFIS - GPS location data displays on FMS Connect, WingX Pro, AnywhereEducation, Jeppesen, ForeFlight and Garmin Pilot Apps
- Streams
GPS data from Garmin GPS 430/480/530/650/750, Garmin G3X, Garmin G3X
Touch Panel G900 and G1000 and Bendix King KLN89, KLN90B, and KLN94 - GPS
data typically works with any App that uses the Apple Standard GPS
location Protocol or installed GPS units sending a non-proprietary
standard NMEA sentence. Contact support to verify that your GPS will
work with the 454.
Video Channel
View all of our videos on our YouTube video channel.
Manuals / Drawings
Warranty
All products come with a 60-day money back guarantee and a one (1) year limited warranty. The warranty will be void if the unit has been opened or tampered with. If you experience any problems with the unit, please call 520-889-1177 or email us at support@guardianavionics.com and we will gladly assist you and have the problem rectified.
WARRANTY COVERAGE
GUARDIAN AVIONICS/CO GUARDIAN LLC. WARRANTS TO THE ORIGINAL CONSUMER PURCHASER, THAT THIS DETECTOR WILL BE FREE OF DEFECTS IN MATERIAL AND WORKMANSHIP FOR A TO REPLACEMENT OF THE PRODUCT, REPAIR OF THE PRODUCT OR REPLACEMENT OF THE PRODUCT WITH REPAIRED PRODUCT AT THE DISCRETION OF THE MANUFACTURER. THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE, NEGLECT, TAMPERING OR OTHER CAUSES NOT ARISING FROM DEFECTS IN MATERIAL OR WORKMANSHIP. THIS WARRANTY EXTENDS
TO THE ORIGINAL CONSUMER PURCHASER OF THE PRODUCT ONLY.
Warranty Disclaimers
Any implied warranties arising out of this sale, including but not limited to the implied warranties of description, merchantability and fitness for a particular purpose, are limited in duration to the above warranty period. In no event shall the Manufacturer be liable for loss of use of this product or for any indirect, special, incidental or consequential damages, or costs, or expenses incurred by the consumer or any other user of this product, whether due to a breach of contract, negligence, strict liability in tort or otherwise. The manufacturer shall have no liability for any personal injury, property damage or any special,
incidental, contingent or consequential damage of any kind resulting from gas leakage, fire or explosion.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above
limitations or exclusions may not apply to you.
Please note that Guardian Avionics is not responsible for loss and/or damages resulting from installation or soldering errors.
Legal Remedies
This warranty gives you specific legal rights and you may also have other rights that vary from state to state.
Warranty Performance
During the above warranty period, your product will be replaced with a comparable product if the defective product is returned, postage prepaid, to Guardian Avionics, Customer Service Department, 1840 E Valencia Rd, Suite 216, Tucson, AZ 85706, together with proof of purchase date. Please include a note describing the problem when you return the unit. The replacement product will be in warranty for the remainder of the original warranty period or for six months, whichever is longer. Other than the cost of postage, no charge will be made for replacement of the defective product.
Important: Do not attempt to open unit. If unit is opened, warranty will be void.
Your Carbon Monoxide Alarm is not a substitute for property, disability, life or other insurance of any kind. Appropriate insurance coverage is your responsibility. Consult your insurance agent.
Warranty Registration
Your unit is automatically registered for a 1-year limited warranty from date of purchase, provided you retain the proof of purchase (invoice). To ensure that you are informed of the latest updates and news on our products, please fill out the warranty card that comes with the product, and mail it to us at:
CO Guardian LLC dba Guardian Avionics.
1840 E Valencia Rd, Suite 216
Tucson, AZ 85706
Your unit has a Serial Number. Please check that the unit you receive has the same serial number as shown in your invoice.
For Warranty Service
In case you experience any problems with the unit, you may contact our customer service department at 520-889-1177 for assistance. Even if you have purchased the unit from one of our distributors, you can contact us directly at the following address for technical support or in case you have any problems with your unit:
Guardian Avionics
CO Guardian LLC.
1840 E Valencia Rd, Suite 216
Tucson, AZ 85706
Phone 520-889-1177
Fax 520-889-8249
Email support@guardianavionics.com
Faa certification
FAA TSO Letter of Approval
AERO 454, AERO 455, AERO 551, AERO 553 TSO Approval Letter
CLICK HERE TO VIEW
FAA Certification
When installed in accordance with this installation manual and the limitations, the installation of our TSO Approved models 452/454/455/551
and 553 is unlikely to have an appreciable effect on the weight, balance, structural strength, reliability, operational characteristics, or other characteristics affecting the airworthiness of the aircraft, and should therefore be eligible for installation as a minor alteration.
Please see the Instructions of continued Airworthiness for each model for limitations (available on downloads
page). Most customers have been able to install these as Minor installation per AC 23.1309-IE and FAR 23.10. You must seek proper guidance prior to installation from you local FAA FISDO for clarification.
FAA Advisory Circular on CO
The above FAA circular provides information on the potential dangers of Carbon Monoxide contamination from faulty engine exhaust systems or cabin heaters of the exhaust gas heat exchange type. It also discusses
means of detection and procedures to follow when contamination is suspected.
FAA Requirements for CO in Aircraft during Certification
FAR. 23.831 Ventilation in Aircraft
(a) Each passenger and crew compartment must be suitably ventilated. Carbon monoxide concentration may not exceed one part in 20,000 parts of air (50 PPM).
All Panel mounted units are designed to alarm within 5 minutes if CO is between 50 PPM and 75 PPM to
meet the requirements of TSO C48.
AERO-152WD Warning Levels shown below. Note: (252,352's, 353's,452's and 552 all alarm with 5 minutes if CO is above 50PPM).
Caution - This product is intended to be used in aircraft enclosed cabins. Because of its super-sensitivity, it's not designed to be in compliance with UL2034, OSHA, and other industry standards.
National Transportation Safety Board Recommends CO Detectors to be installed in all General Aviation Aircraft.
FAA CERTIFICATION / STC
When installed in accordance with this installation manual and the limitations that follow, the installation of the model 452 is unlikely to have an appreciable effect on the weight, balance, structural strength, reliability, operational characteristics, or other characteristics affecting the airworthiness of the aircraft, and should therefore be eligible for installation as a minor alteration.
Model AERO 452 has TSO certification and is STC approved for installation on certified aircraft. Customers have three options depending on their relationship with their local FAA FISDO office (you must seek proper guidance prior to installation). 1) Install it as minor log book entry since the unit is TSO approved as non essential
equipment. 2) Install it using FAA Form 337 as minor alternation. 3) Install it per supplied STC on a Cessna 172. Data shown in our Downloads section.
However, no approval exists for the other panel-mount models of CO Guardian (models AERO 252, 352's, 353's, 551 and 553). Acceptance for the installation and use of as a non-essential equipment (per AC 23-15, paragraph V, pg. 28), must be sought through your local FBO and the
appropriate offices of the Federal Aviation Administration or other certifying agency.
452 Sample 337 FAA Form - please visit Downloads page
Sample 337 Model 552 - please visit Downloads page
Installation examples
View our installation examples.
Recalibration
Because of their sensitive nature, all carbon monoxide
(CO) detector sensors require replacement after a period of time to remain accurate. All Guardian Avionics / CO Guardian aviation CO detectors feature a self-test at power on for each flight. If the unit shows a failure of the CO sensor upon power up, you must send the unit to Guardian Avionics for replacement or overhaul. Depending on level of
use, storage environment, and flight environment, most CO sensors have a usable life of 5-7 years. Though our units have a required Time Before Overhaul (TBO) of Seven (7) years from point of installation regardless of self-test results, we recommend sending in your unit for replacement / recalibration every 5 years during your annual maintenance inspection to assure safety and accuracy of your unit.
The procedure for recalibration is as follows:
- Remove component and note full model number and unit serial number.
- Apply for an RMA Number at: https://www.guardianavionics.com/rma-request or call 520-889-1177 (M-F, 8am to 5pm MST) - the RMA number will be emailed back to you.
- Order a recalibration or new replacement at https://www.guardianavionics.com/recalibration.
- Send unit in under RMA number to: Guardian Avionics, Attn: RMA #___, 1951 East Airport Drive, Tucson, AZ 85756
- Once unit is received by Guardian Avionics, the recalibrated or replaced unit will be shipped within 3-5 business days unless specified. Core charge will be refunded.
- Upon receipt of the recalibrated/replaced unit, a fresh 1 year limited warranty applies and the unit has a fresh 7 year TBO.
