Remanufactured AERO 452-101-011 Panel Mount CO Detector
Remanufactured AERO 452-101-011 Panel Mount CO Detector
452-101-011
Choose Options
Share
Couldn't load pickup availability
- Description
- Specifications
- Video Channel
- Manuals / Drawings
- Warranty
- FAA Certification
- Installation Examples
- Recalibration
Description

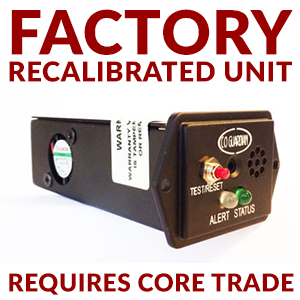

This item is a remanufactured unit for the AERO 452-101 Panel CO Detector (452-101-011). To qualify for this pricing, the core of an existing unit that is being replaced must be returned to Guardian Avionics. Please complete an RMA request to receive an RMA number when sending the core back. There is a Core Charge of $150 will be added to order total and will be credited back to customer when a core is received in return by Guardian Avionics. Total cost after core refund is $349.00
The AERO 452-101 panel mounted Carbon Monoxide (CO) detector is a TSO Certified unit designed especially for use in FAA certified aircraft. A compact and lightweight unit meant to use as little panel space as possible, the 452-101 combines highly accurate TSO certified CO detection for the cockpit as well as cabin pressure warning and the ability to display on an external unit (see hardware list). This CO detection unit is perfect for owners and pilots looking for protection from the dangers of carbon monoxide in their certified aircraft and integration with an existing PFD, MFD, or engine monitor system.
The sensitive onboard CO sensor alarms when carbon monoxide levels measure greater than 50 parts-per-million (PPM). A loud 85 dB aural warning will sound and an amber warning LED will flash when CO measures 50 to 99 PPM over a 3-5 minute span. An aural warning and a red LED flashing warning will trigger when levels climb above 99 PPM immediately when detected.
The built-in pressure sensor indicates altitude warnings at 10,000 feet, 12,500 feet, and 14,000 feet as a reminder to the pilot that supplemental oxygen should be used. These warnings are displayed on an optional annunciator light.
The included RS-232 serial connection allows added CO level reporting and alerts to be displayed on a variety of Primary Flight Display (PFD), Multi-Function Display (MFD), and engine monitor products. Please refer to the approved product list below.
The compact and lightweight AERO 452-101 will fit into a small 2.25 in by 1.5 in instrument position and weighs only 4.0 oz. Installation is very simple and takes only 2-4 hours on average. The 452-101 accommodates a connection to an external annunciator light (sold separately) to add an
additional level of safety when the unit is out of view.
Specifications
Video Channel
Manuals / Drawings
Warranty
This unit has been remanufactured by Guardian Avionics. Both the one-year warranty period and the seven-year Time Before Overhaul (TBO) commence on the date of shipment from Guardian Avionics, not on the original purchase date of the core unit returned.
Guardian Avionics products are covered by a 60-day money-back guarantee and a one-year limited warranty.
Coverage
Guardian Avionics (CO Guardian LLC) warrants to the original purchaser that this detector will be free from defects in material and workmanship for one (1) year from the date of purchase. Coverage is registered automatically; retain your invoice as proof of purchase date.
Should a defect arise within the warranty period, Guardian Avionics will, at its sole discretion, repair the unit, replace it, or furnish a repaired unit. This is the purchaser's sole and exclusive remedy under this warranty. Any repaired or replacement unit is warranted for the remainder of the original warranty period or for six (6) months, whichever is longer. No charge applies other than return postage.
This warranty extends to the original purchaser only and is not transferable.
Exclusions
This warranty does not apply where the unit has been:
- opened, modified, or otherwise tampered with;
- damaged by accident, unreasonable use, or neglect; or
- affected by installation or soldering errors, for which Guardian Avionics accepts no responsibility.
Nor does it extend to any failure arising from a cause other than a defect in material or workmanship.
Disclaimers and Limitation of Liability
All implied warranties, including the implied warranties of description, merchantability, and fitness for a particular purpose, are limited in duration to the warranty period stated above.
Guardian Avionics shall not be liable for loss of use, or for any indirect, special, incidental, or consequential damages, costs, or expenses incurred by any user of this product, whether such claim arises in contract, negligence, strict liability, or otherwise — including any personal injury or property damage resulting from gas leakage, fire, or explosion.
This detector is not a substitute for property, disability, life, or other insurance. Securing appropriate coverage remains the responsibility of the owner.
Certain states do not permit limitations on the duration of an implied warranty, or the exclusion of incidental or consequential damages; accordingly, portions of the foregoing may not apply. This warranty confers specific legal rights, and the purchaser may hold additional rights that vary by jurisdiction.
Claim Procedure
- Verify that the serial number on the unit matches the number shown on your invoice.
- Request a Return Materials Authorization (RMA) number using the online form at guardianavionics.com/pages/rma-request, or by telephone on 520-889-1177 or email to support@guardianavionics.com. An RMA number must be issued before any unit is returned. Units purchased through a dealer should be submitted to Guardian Avionics directly.
- Return the unit postage prepaid to the address below, marked with the RMA number and accompanied by proof of purchase date and a description of the fault.
Where a core deposit applies, the core unit must be returned within 30 days for the deposit to be refunded.
Warranty Service
Guardian Avionics / CO Guardian LLC
Attn: RMA #______
1840 E Valencia Rd, Suite 216
Tucson, AZ 85706
520-889-1177 · Fax 520-889-8249 · support@guardianavionics.com
Monday–Friday, 8:00 a.m. – 5:00 p.m. MST
