MFD 851 integrated with Garmin G3X and GPS (Garmin/ Avidyne)
MFD 851 integrated with Garmin G3X and GPS (Garmin/ Avidyne)
851-201-002
Choose Options
Share
Couldn't load pickup availability
- Description
- Specifications
- Video Channel
- Manuals / Drawings
- Warranty
- Faa certification
- Installation examples
- Recalibration
Description

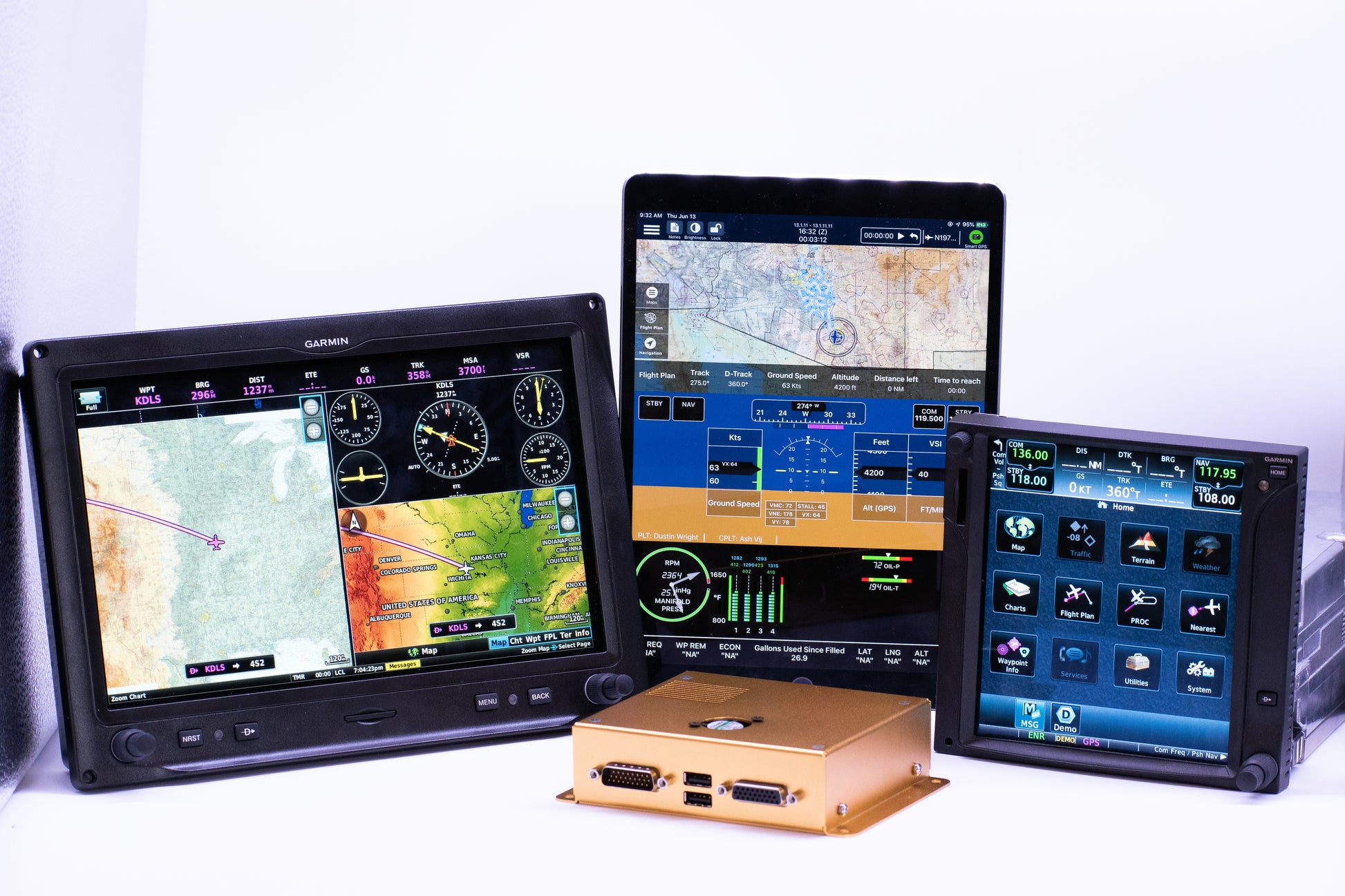

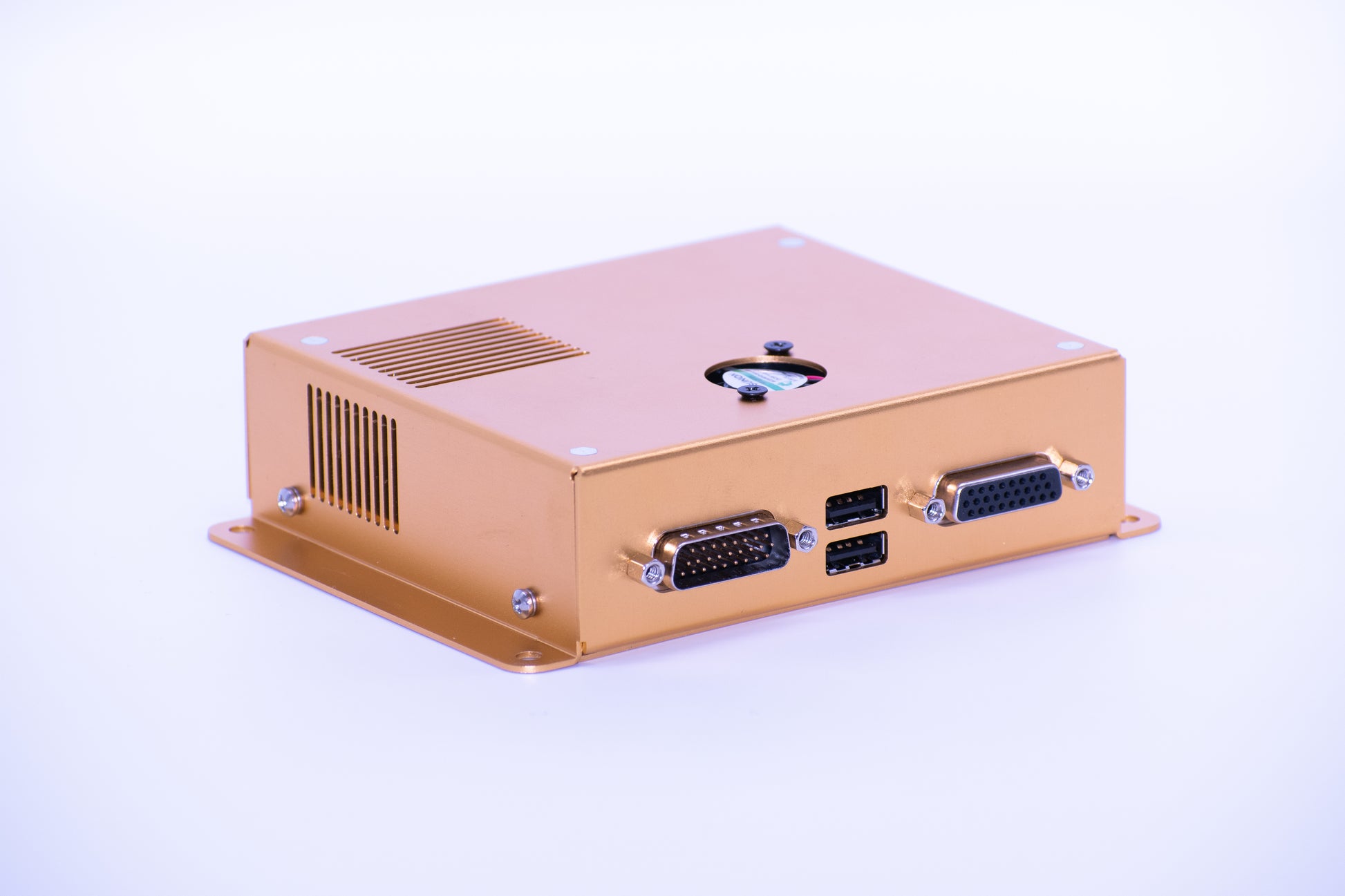

The smartLink 851 is a Flight Data Recorder, CO Detector, USB Power Supply (dual 2.7 amp) that works with the Guardian Avionics smartPlane system. This unit is remote mounted behind the panel or on a smartPlane iPad
mount to save space in smaller panels and is designed to integrate with Garmin G3X, and GPS's (Garmin 175/430/530/650/750, GRN750/650Xi, GNX375,
and GNC355) (Avidyne 440/540) The smartLink 851 communicates with the smartMFD iOS app via a hard wire USB connection.
Start with the CO Poisoning Prevention that Guardian Avionics is Known For.
The smartLink 851 is built around the reliable and accurate Carbon Monoxide detection technology that Guardian Avionics and CO Guardian has been known since 2003. The sensitive onboard CO sensor alarms an initial warning when CO levels measure greater than 50 parts-per-million (PPM)
up to 99 PPM. When the CO level is triggered at 50 to 99 PPM will signal an alarm around 3-1/2 minutes. A warning will trigger when levels climb above 100 PPM immediately when detected.
Your GPS, Engine Monitor, and Attitude Connect & Display on Your iPad & iPhone.
The smartLink 851 can be connected to your onboard GPS and Engine Monitor GARMIN G3X and G3X Touch via a RS-232 connection, allowing accurate navigation and engine performance data to be aggregated, transmitted,
displayed, and recorded on your iPad and/or iPhone through the Guardian Avionics smartMFD app. The data stored on the iPad or iPhone is transmitted to the Cloud via cellular or Wi-Fi located at www.guardianavionicsdata.com. As
a result, your iPad and iPhone become mini-multifunction displays -- fully equipped with accurate VFR and IFR maps and charts, rich graphical engine performance information, and even a mini-PFD/MFD for quick reference. All Carbon Monoxide alerts and levels are also available on the smartMFD app too!
Your 851 connected to your ADS-B.
With our new smartLink system unit 851, it’s now easy for you to connect your Flight Data Recorder to your ADS-B! Meets the FAA requirements of January 2020.
ADS-B receivers can make your flight safer and more efficient by providing you real-time weather, traffic, TFRs, and other flight data.
Our Flight Data Recorder can easily be connected to a large panel of ADS-B units in the market such as FlightBox ADS-B, Avidyne IFD series (440,540) and much more.
Your 851 connected to your Radio (NAV/COM)
Our smartLink 851 Flight Data recorder cannot only be connected to your GPS, Engine Monitor and ADS-B, but also to your own Radio through a solid RS-232 connection through secondary radios. Radio includes Navigation and communication tools such as VOR/LOC/GS and VHF comm transceiver allowing you to have a full and complete package.
Our 851 Flight Data recorder is compatible with a large panel of Radios available in the market such as the Trig TY91, Trig TY92, Garmin SL-30, GTR225, and GNC255.
All Your Flight Data is Sent and Stored in the smartData Web site at www.guardianavionicsdata.com for You.
Through the smartMFD app, all of your flight data is stored and uploaded to your account on the Guardian Avionics smartData web app via 3G/4G/LTE or WiFi at the end of every flight, with the ability to download and view
flight tracks on programs like Google Earth, view engine data through rich charts and graphs, and even export your data for use through other programs or to send to others.
How can you use the data? See how accurate your recent practice approaches were on a recent flight. Send trend data to your A&P or engine manufacturer to troubleshoot an issue. Evaluate all aspects of a recent training flight, including radio procedures.
Budget and Panel Space Friendly.
Equipping the smartLink 851 is like bundling multiple pieces of equipment into one compact remote mounted or smartPanel mounted unit. In the past you’d need to buy and install a CO detector, GPS signal booster, USB Power
Supply for your iPad/iPhone as separate items – and flight data recording on an app for both navigation and engine data was not even available! Now you can get all of that in one small, easy to install
package for one reasonable price!
NORSEE Approved for Part 23 Aircraft Installation.
All smartPlane products from Guardian Avionics are approved for installation in certified aircraft under 14 CFR Part 23, 27 and 29 as "Non-Required Safety Enhancing Equipment" (NORSEE) as outlined in FAA
memorandum number PS-AIR-21.8-1602. Installation requires only a minor alteration logbook entry by the installing A&P mechanic or
inspector. Please click on this link to see all NORSEE authorization letters for Guardian Avionics aircraft.
Compatible GPS and Engine Data Systems
The smartLink 851 supports data input via RS-232 from the systems listed at this link.
Specifications
- 2 USB Smart Chargers 5.1 VDC @ 2 Amps
- 3 Bluetooth connections
- 2 RS232 serial outputs
- 4 RS232 serial inputs
- 5 Amp circuit breaker
- Built-in CO detector
- 26-pin high density connector (for image see Images section above)
- Temperature range: -20 degrees Celsius to 70 degrees Celsius
- Humidity range: 5% to 95% RH (non-condensating)
- Input power 14/28 VDC
- Built-in pressure sensor provides cabin pressure altitude warnings at 10K, 12.5K, and 14K feet
- Built-in temperature sensor
- Audible tone to headset
- Dimensions (approximate - inches): 5.75"L x 1.3"H x 4.25"W
- Weight: 9 oz.
- 1 year Limited Warranty
- 60-day money-back guarantee
Video Channel
View all of our videos on our YouTube video channel.
Manuals / Drawings
- smartLink 851 User Manual
- smartLink 851 Installation Drawings
- Guardian Avionics 851, Garmin G3X and Garmin GPS or Avidyne GPS installation Set Up (PDF)
- Guardian Avionics 851 Owners Initial Setup for Aircraft programming (PDF)
- FAA Letter of Authorization for NORSEE Installation in 14 CFR Part 23 Aircraft (PDF)
Warranty
All products come with a 60-day money back guarantee and a one (1) year limited warranty. The warranty will be void if the unit has been opened or tampered with. If you experience any problems with the unit, please call 520-889-1177 or email us at support@guardianavionics.com and we will gladly assist you and have the problem rectified.
WARRANTY COVERAGE
GUARDIAN AVIONICS/CO GUARDIAN LLC. WARRANTS TO THE ORIGINAL CONSUMER PURCHASER, THAT THIS DETECTOR WILL BE FREE OF DEFECTS IN MATERIAL AND WORKMANSHIP FOR A TO REPLACEMENT OF THE PRODUCT, REPAIR OF THE PRODUCT OR REPLACEMENT OF THE PRODUCT WITH REPAIRED PRODUCT AT THE DISCRETION OF THE MANUFACTURER. THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE, NEGLECT, TAMPERING OR OTHER CAUSES NOT ARISING FROM DEFECTS IN MATERIAL OR WORKMANSHIP. THIS WARRANTY EXTENDS
TO THE ORIGINAL CONSUMER PURCHASER OF THE PRODUCT ONLY.
Warranty Disclaimers
Any implied warranties arising out of this sale, including but not limited to the implied warranties of description, merchantability and fitness for a particular purpose, are limited in duration to the above warranty period. In no event shall the Manufacturer be liable for loss of use of this product or for any indirect, special, incidental or consequential damages, or costs, or expenses incurred by the consumer or any other user of this product, whether due to a breach of contract, negligence, strict liability in tort or otherwise. The manufacturer shall have no liability for any personal injury, property damage or any special,
incidental, contingent or consequential damage of any kind resulting from gas leakage, fire or explosion.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above
limitations or exclusions may not apply to you.
Please note that Guardian Avionics is not responsible for loss and/or damages resulting from installation or soldering errors.
Legal Remedies
This warranty gives you specific legal rights and you may also have other rights that vary from state to state.
Warranty Performance
During the above warranty period, your product will be replaced with a comparable product if the defective product is returned, postage prepaid, to Guardian Avionics, Customer Service Department, 1840 E Valencia Rd, Suite 216, Tucson, AZ 85706, together with proof of purchase date. Please include a note describing the problem when you return the unit. The replacement product will be in warranty for the remainder of the original warranty period or for six months, whichever is longer. Other than the cost of postage, no charge will be made for replacement of the defective product.
Important: Do not attempt to open unit. If unit is opened, warranty will be void.
Your Carbon Monoxide Alarm is not a substitute for property, disability, life or other insurance of any kind. Appropriate insurance coverage is your responsibility. Consult your insurance agent.
Warranty Registration
Your unit is automatically registered for a 1-year limited warranty from date of purchase, provided you retain the proof of purchase (invoice). To ensure that you are informed of the latest updates and news on our products, please fill out the warranty card that comes with the product, and mail it to us at:
CO Guardian LLC dba Guardian Avionics.
1840 E Valencia Rd, Suite 216
Tucson, AZ 85706
Your unit has a Serial Number. Please check that the unit you receive has the same serial number as shown in your invoice.
For Warranty Service
In case you experience any problems with the unit, you may contact our customer service department at 520-889-1177 for assistance. Even if you have purchased the unit from one of our distributors, you can contact us directly at the following address for technical support or in case you have any problems with your unit:
Guardian Avionics
CO Guardian LLC.
1840 E Valencia Rd, Suite 216
Tucson, AZ 85706
Phone 520-889-1177
Fax 520-889-8249
Email support@guardianavionics.com
Faa certification
Installation examples
View our installation examples.
